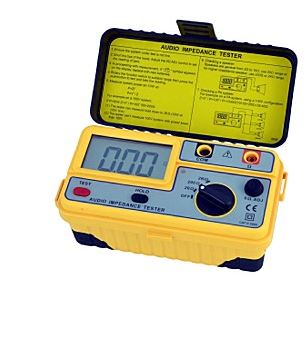

SEW 1106 IM Audio Impedance Tester (0-2k Ohm)
Manufacturer: SEW Model: 1106 IM Origin: Taiwan - Contact
Measuring ranges: 0-20Ω / 0-200Ω / 0-2kΩ
Test frequency: 1kHz
Accuracy:
20Ω:±2%rdg±2dgt
200Ω/2kΩ : ±2%rdg±2dgt
Low battery:indication “ “ Symbol appears on the display
Data hold indication “ “ Symbol appears on the display
Dimensions: 175(L) × 85(W) × 75(D)mm
Weight:Approx. 600g
Power source 1.5V (AA) × 8
Safety standard EN 61010-1 CAT III 200V
EN 61326-1
Details
| FEATURES | ||||||||||||||||||||||||||||||||
|
● Large LCD : 68 × 34mm (2.677" × 1.338").
● True measurement of speaker systems actural impedance at 1kHz. ● Three test ranges allow testing of home theater and commercial sound systems. ● Measures transformer impedances. ● Battery operation. ● Low battery indication. ● Data hold function. ● 0Ω adjustment. |
||||||||||||||||||||||||||||||||
| SPECIFICATIONS | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
