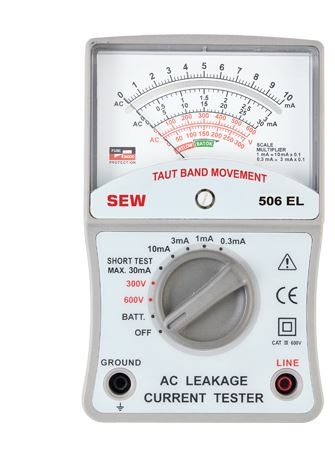

SEW 506 EL Analog Leakage Meters (AC, 0〜30mA)

Manufacturer: SEW
Model: 506 EL
Origin: Taiwan
Contact
- Request a Quotation
Contact us for the best price

Myanmar: 09 266993007 / 09 266993008

Email: info@emin.com.mm

Specifications
Manufacturer Info

Measuring range: 0.3mA-1mA-3mA-10mA-30mA
Accuracy: ±2% of full scale
Input resistance: 1.5kΩ
AC Voltage range: 0-300 / 0-600V
Accuracy: ±2% of full scale
Dimensions: 160(L) × 100(W) × 45(D)mm
Weight:360g
Power source: 9V(6F22) × 1

Details

FEATURES

● High quality movement.
● Compact and lightweight; easy to use and store.
● Mirror scale: for easier viewing & reading.
● Built-in stand makes reading and measuring easy.
● 200μA full scale value.
● Fuse-protected.
● Low battery indication.

SPECIFICATIONS

AC Leakage Current
Measuring range	0.3mA-1mA-3mA-10mA-30mA
Accuracy	±2% of full scale
Input resistance	1.5kΩ
AC Voltage
Measuring range	0-300 / 0-600V
Accuracy	±2% of full scale
Input resistance	300V 1MΩ 600V 2MΩ
General
Low battery indication	Battery check indicate good battery from 7Vdc to 9Vdc during a load test of 2mA
Dimensions	160(L) × 100(W) × 45(D)mm
Weight (battery included)	Approx. 360g
Power source	9V(6F22) × 1
Safety standard	EN 61010-1 CAT III 600V EN 61326-1

Tags:0.3mA - 1mA - 3mA - 10mA - 30mA)Leakage Meter SEW 506 EL (AC
