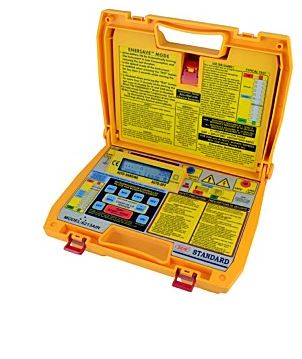

SEW 6213A IN Insulation Tester (10KV, 500GΩ)
Manufacturer: SEW Model: 6213A IN - Contact
- In stock: 1 Unit
Test voltage (DC V): From 500Vdc to 10kVdc Adjustable in 500V steps
Preset buttons: 1kV / 2.5kV / 5kV / 10kV
Measuring ranges: 800kΩ-500GΩ (auto-ranging)
Accuracy:± 5% rdg ± 5 dgt
Dimensions: 330(L) × 260(W) × 160(D)mm
Weight: 3600g
Power source:1.5V(AA) × 8
Details
|
|||||||||||||||||||||||||||||||||||
| FEATURES | |||||||||||||||||||||||||||||||||||
| ● Microprocessor-controlled. ● 2 ×16 characters; large intelligent LCD module. ● 20 Insulation test voltages 500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV, 3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV, 9kV, 9.5kV, 10kV. ● Ener-Save™ feature to extend battery life. ● Bar-graph indicates test voltage; rise and decay can be observed. ● Visual and audible warning if external voltage is present (>500Vac or Vdc.) ● Insulation resistance; auto-ranging on all ranges. ● Overload protection. ● Low battery indicator (read time battery voltage measurement). ● Measures insulation time duration of the test. ● Low battery consumption. ● Better than 10% accuracy on all ranges. ● Auto-off. ● Calculates Dielectric Absorption Ratio (DAR) automatically. ● Calculates Polarization Index (PI) automatically. |
|||||||||||||||||||||||||||||||||||
| SPECIFICATIONS | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
