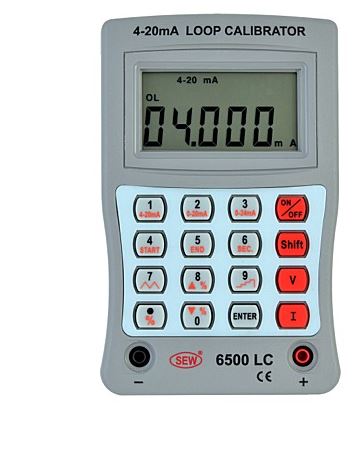

SEW 6500 LC Loop Calibrator (0-24VDC, 0-24mmA)

Manufacturer: SEW
Model: 6500 LC
Origin: Taiwan
Contact
In stock: 1 Unit
- Request a Quotation
Contact us for the best price

Myanmar: 09 266993007 / 09 266993008

Email: info@emin.com.mm

Specifications
Manufacturer Info

4-20mA (1K Ohm Load, 24V Loop Output).

0-20mA and 0-24mA output ranges.

0.025% low deviation.

Auto Ramp and Step functions.

0-100% output with percentage step option

0-24V DC voltage source.

Open loop and overload buzzer alarm.

Low battery indication.

Details

FEATURES

● 4-20mA (1kΩ load, 24V Loop Supply).
● 0.025% Basic Accuracy.
● Simple Operation Interface.
● Auto Ramp and Step Functions.
● 0-20mA, 0-24mA selectable.
● Incremental percentage setting : 0-100%.
● Warning beeper when output is open.
● 0-24V output.
● The minimum load of 20kΩ on voltage mode.

SPECIFICATIONS

DC Current (1kΩ Max Load, 24v Loop Supply)
Range	0-4mA / 4-20mA / 20-24mA
Resolution	1uA
Accuracy	±0.025%±10uA / ±0.025%±5uA / ±0.025%±5uA
Beeper warning when output circuit is open and specified output voltage > 24V.
DC Voltage (Approx. 10MΩ load)
Range	0-4V / 4-20V / 20-24V
Resolution	1mV
Accuracy	±0.05%±10mV / ±0.05%±5mV / ±0.05%±5mV
Beeper warning when voltage is short and specified output current is > 24mA.
General
Power consumption	150mA at 24V 1kΩ load
Operating temperature	0º C - 40º C
Operating humidity	≤ 80% R.H.
Storage temperature	-10º C - 50º C
Storage humidity	≤ 85% R.H.
Dimensions	160(L) × 100(W) × 38(D)mm
Weight (battery included)	Approx. 350g
Power source	9V(6LF22) × 1
Safety standard	EN 61326-1
