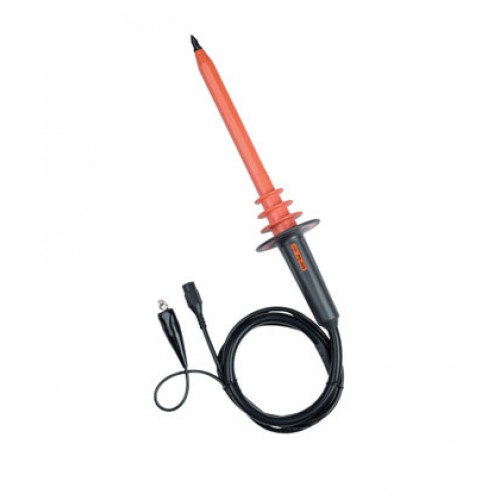

SEW PD-20S High Voltage Probe (30kV DC, 20kV AC)
Manufacturer: SEW Model: PD-20s Origin: Taiwan - Contact
Input impedance: 500 MΩ
Attenuation ratio: 1000 : 1
Accuracy:
DCV: (0 ~ 20kV) ± 1%,
DCV: (20kV ~ 30kV) ± 2%
AC:V (0 ~ 20kV) typically ± 5% at 50/60 Hz
Max. working voltage : 30kV DC or 20kV AC
Cable length: 1 m
Weight: Approx. 260g
Details
|
|||||||||||||||||||||||
| FEATURES | |||||||||||||||||||||||
| ● Measures both AC and DC voltages with oscilloscopes. ● Are typically used to measure high voltages in TV sets, power supplies and instruments in laboratories. ● Lightweight and rugged. ● 2 available contact tips: round needle tip for normal use and a special flat spring-type for CRT anode. |
|||||||||||||||||||||||
| SPECIFICATIONS | |||||||||||||||||||||||
|
