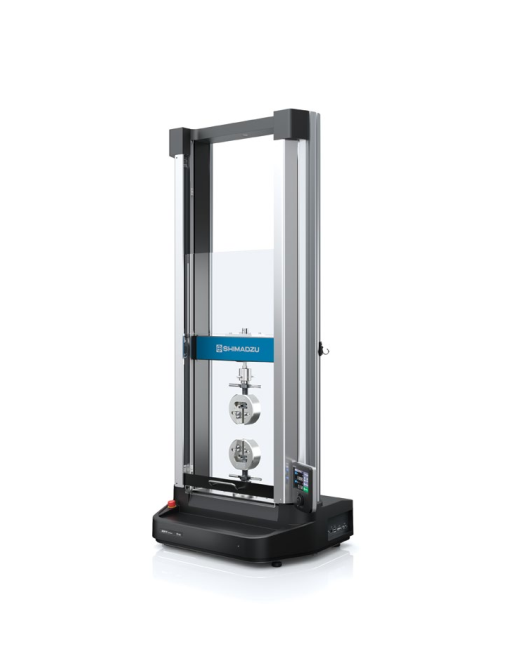

Capacity max: 10kN
Loading method: Direct high-precision constant-speed strain control method using precision ball screw drive with no backlash
Test Force: Accuracy Standard Accuracy Type 1/500 Within ±1 % of the displayed test force (within the range of 1/1 to 1/500 of the rated load cell capacity) JIS B7721 class 1, EN 10002-2 grade 1, ISO 7500-1 class 1, BS 1610 class 1, complies with ASTM E4 (*1)
Test Force calibration: Select from automatic test force calibration, tension, or tension and compression
Crosshead Speed Range: 0.0005 to 1,500 mm/min (can be set as desired, not in steps)
Maximum return speed: 1650 mm/min
Crosshead Speed accuracy: ± 0.1%
Crosshead Speed and Allowable Test: Force Up to the load cell capacity for all speeds
Crosshead-Table Clearance (Tensile stroke):
Max. 1180 mm (740 mm)
Effective Test Width: 425 mm
Crosshead Position Detection display methods
Digital display (display resolution: 0.001 mm)
Crosshead Position Detection Precision of
Crosshead Positional Accuracy: Within ±0.1 % or within ±0.01 mm of indicated value, whichever is greater
Sampling Rate: Maximum 0.2 msec
Main Frame size (WxDxH): W657 mm × D525 mm × H1,562 mm
Weight: 75 kg
Includes:
336-04023-09: Load cell and Joint Kit, CLASS1 tension calibration 1/500 1 kN
345-48280-06: TRAPEZIUMX-V Single Lite For AGS-V Series
346-52327-04: SCG-1kNA, Standard Screw-Type Flat Grips 1kN
PC&Printer: Local Purchase DELL/HP model, Window 10/11 64bit licence; core i5, RAM8GB, Monitor 21inch, Office licence, black – white)
