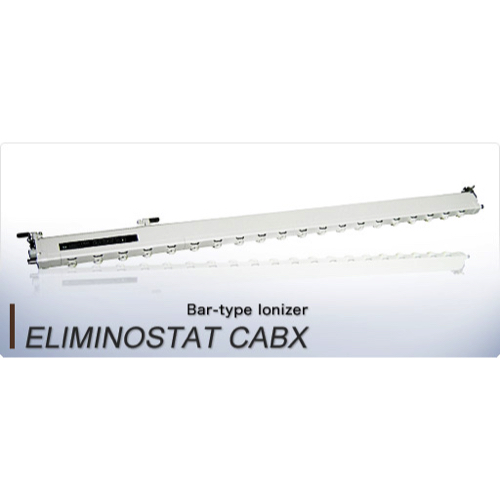

Shishido CABX1350 CABX HDC-AC Ionizing Bar (1350mm)

Weights: 1260g

Lengths: 1350mm

Ion generation method: Corona discharge method (HDC-AC)

Input power supply: DC24 V ±5 %

Output voltage under abnormal circumstances: No voltage contact output (by normal close MOSFET relay)

Air supply range: Less than 0.5 MPa

Ion balance: Within ±30 V (distance 300 mm, air pressure 0.3 MPa at time of supply)

Operating environment:

    Surrounding temperature: 5 to 40 ℃ , surrounding humidity: 15% to 85% (no condensation)

    Air supply: clean dry air

Accompanying items: Operation manual, mounting bracket, power supply and signal connector cable (3 m), intermediate bracket (over 1100 mm)
