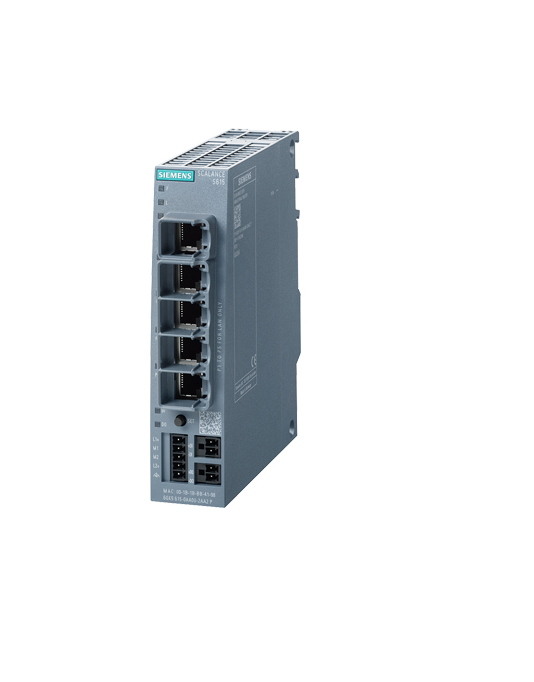

SIEMENS 6GK5615-0AA00-2AA2 Scalance S615 LAN Router

Transfer rate: 10 Mbit/s, 100 Mbit/s

Interfaces

Number of electrical/optical connections / for network components or terminal equipment / maximum: 5

Number of electrical connections

for power supply: 1

for redundant voltage supply: 1

Type of electrical connection

for power supply: 5-pole terminal block

Design of the removable storage / C-PLUG: Yes

Signal inputs/outputs

Number of electrical connections

for digital input signals: 1

for digital output signals: 1

Type of electrical connection

for digital input signals: 2-pole terminal block

for digital output signals: 2-pole terminal block

Supply voltage, current consumption, power loss

Type of voltage / 1 / of the supply voltage: DC

Supply voltage / 1 / rated value: 24 V

Power loss [W] / 1 / rated value: 4 W

Supply voltage / 1 / rated value: 10.8 ... 28.8 V

Consumed current

at DC / at 24 V / typical: 0.2 A

product component / 1 / fusing at power supply input: Yes

fuse protection type / 1 / at input for supply voltage: Non-replaceable melting fuse (F 2 A5 / 32 V)

Ambient conditions

Ambient temperature

during operation -40 ... +70 °C

during storage -40 ... +80 °C

during transport -40 ... +80 °C

Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %
