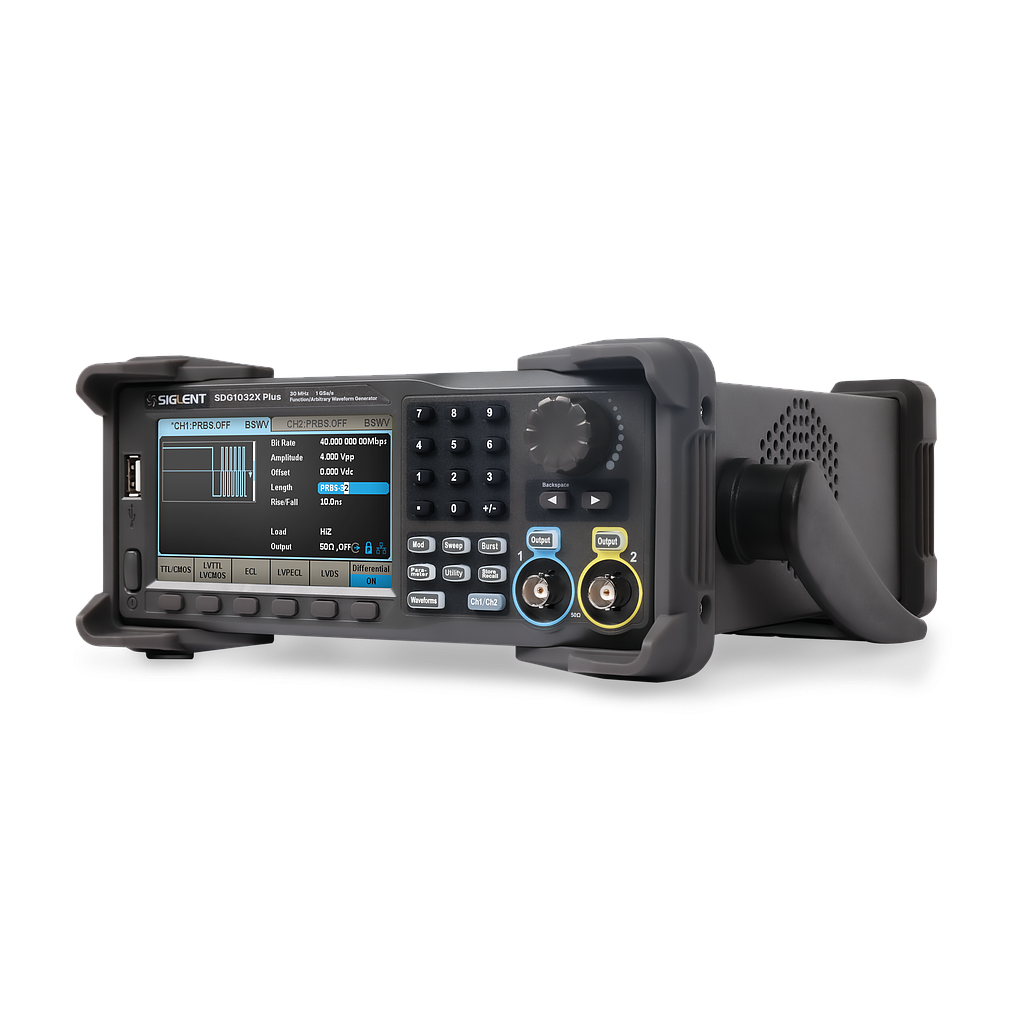

SIGLENT SDG1032X Plus Function/Abitrary Waveform Generator (30 MHz, 2 CH, 1 GSa/s)
Manufacturer: SIGLENT Model: SDG1032X Plus - Contact
Max output frequency: 30 MHz
Number of channels: 2
Sampling rate: 1 GSa/s (4X Interpolation)
Vertical resolution: 16 bits
Arbitrary waveform length: 8 Mpts/CH
Max. amplitude: ±10 V
Display: 4.3” display, 480 x 272 x RGB
Interface: Standard: USB Host, USB Device, LAN; Optional: GPIB (USB-GPIB adaptor)
Standard Configurations:
Quick Start: 1
Power cord: 1
Calibration Certificate: 1
USB cable: 1
Optional Configurations
BNC Coaxial Cable: SDG-BNC
20 dB Attenuator: ATT-20 dB
USB-GPIB Adapter: USB-GPIB
10W Power Amplifier: SPA1010
