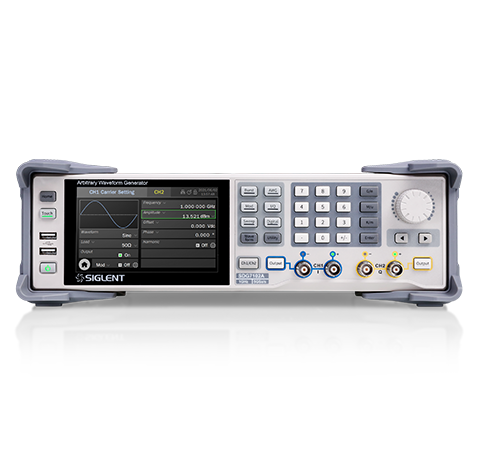

- Number of channels: 2 Differential/Single-ended
- Bandwidth: 1 GHz
- Sample rate: 5 GSa/s
- Vertical resolution: 14-bit
- Arbitrary waveform: 0.01 Sa/s ~ 2.5 GSa/s sample rate; 24 pts ~ 512 Mpts/ch memory depth, with segment editing and playback
- Vector signal (Optional): 500 MS/s max symbol rate; Carrier DC ~ 1 GHz settable. Includes modulation modes such as ASK, PSK, FSK and QAM. EasyIQ software provides vector signal creation and editing
- Continuous waveform: Up to 1GHz, supports harmonic generation function
- Pulse: Min pulse width 1 ns, min. edge 500 ps pulse with low jitter, the rise/fall edge is independently fine adjustable, and the pulse width is fine adjustable
- Noise: Bandwidth 1 mHz ~ 1 GHz adjustable
- PRBS: Bit rate 1 μbps ~ 312.5 Mbps, length PRBS3 ~ PRBS32
- Complex signal generation: Supports internal/external modulation, AM, FM, PM, PWM, FSK, PSK, ASK, etc.; Supports sweep; Support burst
- Dual-channel function: Inter channel tracking, coupling, and copying. Dual channel superposition function. Supports mutual modulation between channels
- Output range: 24 Vpp analog output superimposed ± 12 V DC offset, supports a maximum output range of ± 24 V (48 V)
- Digital bus(Optional): 16-bit, LVTTL or LVDS output; Bit rate: 1 μbps ~ 1 Gbps
- Interface: USB 2.0 Host x3, USB 2.0 Device(USBTMC); LAN 10M/100M (VXI-11/Telnet/Socket/WebServer); EXT MOD/CNT, 10MHz In, 10MHz Out, Marker x2, Trigger In/Out
- Interaction: 5” TFT-LCD with capacitive touch screen (800x480); Supports mouse operation; Supports Webserver; Supports SCPI control
