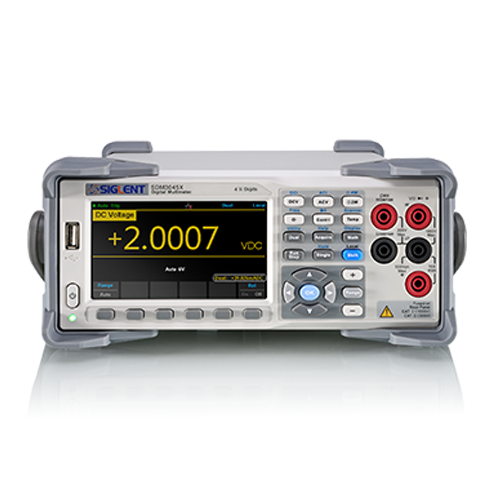

SIGLENT SDM3045X Digital Multimeter (4½ digits)
Manufacturer: SIGLENT Model: SDM3045X Guarantee: 12 Month - Contact
DC Voltage: 600mV-1000V
DC Current: 600μA-10A
AC Voltage: True-RMS, 600mV-750V
AC Current: True-RMS, 60mA-10A
2/4-Wire resistance: 600Ω-100MΩ
Capacitance: 2nF-10000μF
Continuity test: Range is fixed at 2kΩ
Diode Test: Adjustable range is 0-4V
Frequency measurement: 20Hz-500KHz
Period measurement: 2μs-0.05s
Temperature: Support for TC and RTD sensors
Display: 4.3” TFT-LCD, 480*272
Reading resolution: Real 4½ digits readings resolution (66.000 counts)
Size: 1 Gb Nand Flash
Standard Interface: USB Device, USB Host, LAN
Optional Interface: USB-GPIB
Standard accessories
Power Cord: 1
USB Cable: 1
Quick Start: 1
Calibration Certificate: 1
Test leads and Alligator clips: 2
Optional accessories
USB-GPIB adapter
