Model |

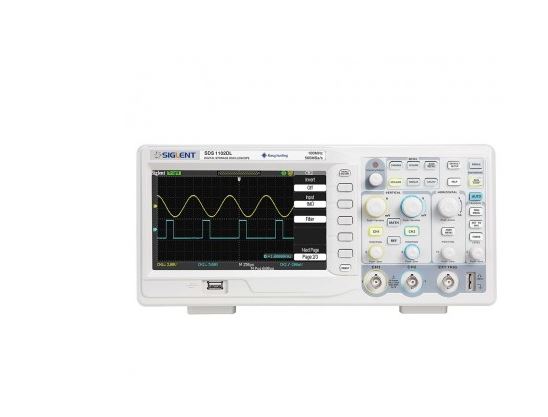

SDS1202DL |
|||
|
Bandwidth |
200MHz |
|||
|
Channels |
2CH+1EXT |
|||
|
Real time sampling rate |
500MSa/s |
|||
|
Equivalent sampling rate |
50GSa/s |
|||
|
Memory depth |
32k |
|||
|
Rise time |
< 1.8ns |
|||
|
Input impedance |
1MΩ‖17pF |
|||
|
Time base range |
2.5ns/div-50s/div |
|||
|
Scan: 100ms-50s/div |
||||
|
Vertical sensitivity |
2mV-10V/div |
|||
|
Vertical resolution |
8bit |
|||
|
Trigger source |
CH1, CH2, Ext, Ext/5, AC Line |
|||
|
Trigger types |
Edge, Pulse, Video, Slope, Alternative |
|||
|
Math Operation |
+, -, ×, ÷, FFT |
|||
|
Digital filter |
High pass, Low pass, Band pass, Band Stop |
|||
|
Max input voltage |
±400V (DC+AC Pk-Pk), CAT 1, CATII |
|||
|
Internal storage |
2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms |
|||
|
External storage |
Bitmap save, CSV save, Waveform save, Setting save |
|||
|
Language |
English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic |
|||
|
Interface |
USB Host, USB Device, RS-232, Pass/Fail out |
|||
|
Display |
7 inches(178mm) color TFT(480*234) LCD |
|||
|
Power |
AC 100-240V, 45Hz-440Hz, 50VA Max |
|||
|
PC software |
Can through the computer remote control oscilloscope, extraction waveform analysis data |
|||
|
Remark |
With original source seamless connection, form signal collection, produce integration system |
|||
|
Detailed performance parameters and technical index please refer to《SDS1000DLSeries Datasheet》 |
||||
Optional Accessories:
1. BNC Coaxial cable
2. RS-232 Serial line
3. USB-GPIB
4. EasyDsoLib Software setups (free)
5. Oscilloscope portable bag
|
