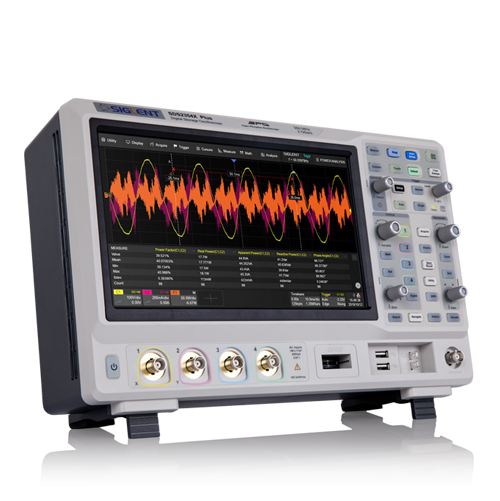

SIGLENT SDS2204X Plus Super Phosphor Oscilloscopes (200MHz; 4+EXT; 2GSa/s)

Analog channels: 4+EXT

Bandwidth: 200 MHz

Sample rate (Max.): 2GSa/s (interleaving mode), 1GSa/s (non-interleaving mode)

Memory depth (Max.): 200Mpts/ch (interleaving mode), 100Mpts/ch (non-interleaving mode)

Waveform capture rate (Max.): 120,000wfm/s (Normal mode); 500,000 wfm/s (Sequence mode)

Vertical resolution: 8-bit. 10-bit mode (with typical 100MHz bandwidth)

Trigger type: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial

Serial trigger and decode:

- Standard: I2C, SPI, UART, CAN, LIN

- Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only)

Measurement: More than 50 parameters, supports statistics with histogram and trend

Digital channel (optional): 16-channel; maximum sample rate up to 1.25 GSa/s; record length up to 62.5 Mpts

Waveform generator (optional): Single channel external USB waveform generator, frequency up to 25 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA Output

Probe (standard): SP3050A, 500MHz, 1 probe supplied for each channel

Display: 10.1” TFT-LCD with capacitive touch screen (1024*600)

Standard accessories:

USB cable: 1

Quick start: 1

Passive probe: x4

Certificate of calibration: 1

Power cord: 1

Optional accessories

Waveform generator option (software): SDS2000XP-FG

16 digital channels (software): SDS2000XP-16LA

16-channel logic probe: SPL2016

Power Analysis (software): SDS2000XP-PA

Power Analysis deskew fixture: DF2001A

I2S trigger & decode (software): SDS2000XP-I2S

MIL-STD-1553B trigger & decode (software): SDS2000XP-1553B

FlexRay trigger & decode (software): SDS2000XP-FlexRay

CAN FD trigger & decode (software): SDS2000XP-CANFD

SENT trigger & decode (software): SDS2000XP-SENT

Manchester decode (software): SDS2000XP-Manch

100 MHz to 200 MHz bandwidth upgrade (4-ch model) (software): SDS2000XP-4BW02

200 MHz to 350 MHz bandwidth upgrade (4-ch model) (software): SDS2000XP-4BW03

350 MHz to 500 MHz bandwidth upgrade (4-ch model) (software): SDS2000XP-4BW05

ISFE isolated front end: ISFE

STB3 demo signal source: STB3

High voltage probe: HPB4010

High voltage differential probe: DPB1300/DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A

Current probe: CPL5100/CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500

Bag: BAG-S2
