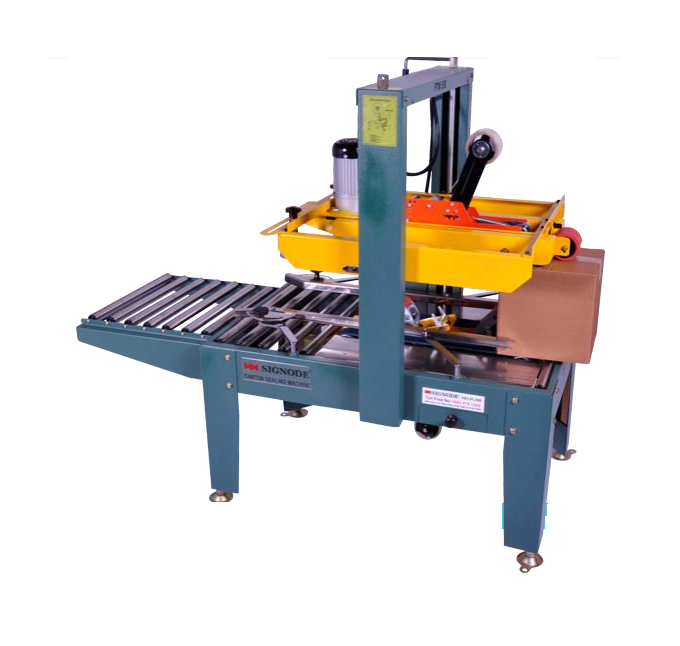

SIGNODE FTM Flexible Taping Machine

Taping Head: Standard (2'72.5'73"), Flexible ( 2'72.5")

Length: 1590 mm( With 0.5 Mtr Conveyor)

Width: 810 mmHeight1400 mm

Weight: 155 Kg

Color : RAL 6000 & RAL 1021 Yellow (Moving Parts)

Drive Motor: 0.25 HP, 2 No.

Belt speed: 20 Metres/ Min

Machine through put : Belt speed/( Carton length+280 mm)

Utility requirements:

Air requirement : NA

Air consumption : NA

Power supply : 415 VAC, 3 Phase, 50 Hz

Power consumption : 0.36 KW

Tap Roll length : 65M/ 650M/ 1000M

Case dimensions:

Length : 150 mm - Un Limited

Width : 160 mm -550 mm

Height : 100 mm -550 mm

Weight : 2- 50 Kg

Carton Ply : Min 3 Ply
