Manufacturer: SIMCO

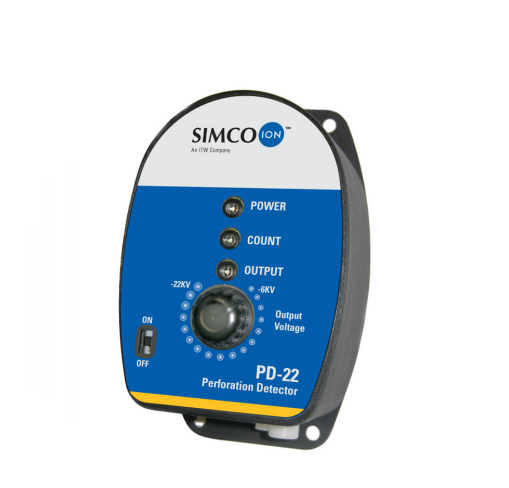

Model: PD-22
Warranty: 12 months
Input Power: 24VDC, 0.6 A, 14W (Max.)
Output Voltage Range: 2 to 22kVDC (Negative Polarity)
Output Current: 1mA (Max, Single Port Powered)
Detector Output: 15ms Pulse
Switching Current (IF)60mA
Detector Frequency: 5Hz Max.
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Status Indicators:
Power: Green LED
Count Control: Yellow LED
Output Voltage: Blue LED
Interface Connections: (12) Position Terminal Block
Enclosure: Glass Reinforced Polycarbonate
Overall Dimensions: 6.10" L x 3.79" W x 3.10"D (154.9mm L x 96.3mm W x 78.7mm D)
Weight: 1.55 lb (0.70 kg)
Universal AC Adapter: 100-240 VAC Input /24VDC, 1.66 A Output
Compliant: RoHS
