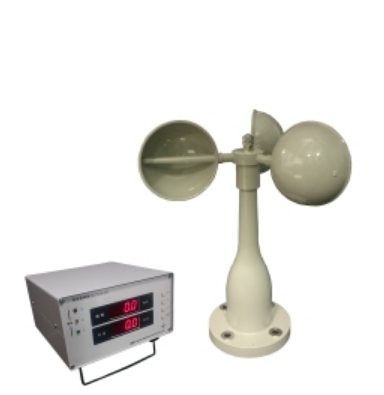

skSATO WAT6D0-3-00 Digital Wind Speed Indicator with Alarm (0~99.9m/s)

Applicable sensor: No.7915-00 3-Cup type anemometer (W11)

Input signal: 30V±1V AC (no load) at 60m/s

Display: Red 7-segment LED 4 digits height: 14.2mm (upper and lower)

Display elements: Instantaneous wind speed and mean wind speed for 10 minutes

Display range: 0~99.9m/s

Sampling: approx. 1 sec. (lighting hold time)

Alarm elements: Instantaneous or mean wind speed (alarm setting range: 5~90m/s)

* Judgement condition is the mutual setting for first, second and third alarms.

Alarm output:

- First alarm:

            + Non-voltage make contact, Contact capacity: 24VDC 1A (resistance load)

            + Green LED blinking (slow)

            + Buzzer sound (slow continuant)

- Second alarm:

            + Non-voltage make contact, Contact capacity: 24VDC 1A (resistance load)

            + Yellow LED blinking (fast)

            + Buzzer sound (fast continuant)

- Third alarm:

            + Non-voltage make contact, Contact capacity: 24VDC 1A (resistance load)

            + Red LED blinking (continuous)

            + Buzzer sound (continuous sound)

Alarm reset: Contact output and LED display: When the wind speed is lower than the alarm setting value

                    Buzzer sound: to stop the buzzer with the button in the front panel

Operation ambient: 0 ~ 50°C, lower than 90%rh (but no condensing)

Remote distance: within approx. 2km (in use of CVVS 1.25mm2 cable)

Case: Steel plate, desk-top type (with rubber foot and tilt stand)

Power requirement: 100VAC±10%, 50/60Hz, approx. 15VA

Dimensions: approx. (W)200×(H)110×(D)200mm

Weight: ~ 3.5kg
