Input: Number of points: 3, 6, 9, 12 points (select at a time of purchase)
* 12 points cannot be selected when the DI/DO or Relay option is selected
Measuring cycle: 100 ms
Recording cycle: 1 sec. to 60 min. (Main/Sub record)
100 ms can be selected only at the Sub record
Input signal: Thermocouple: K, E, J, T, C, N, PLII, U, L, R, S, B, PR20-40, Au-Fe
RTD: Pt 100 Ω, JPt 100 Ω
DC voltage: -10 to 10 mV, 0 to 20 mV, 0 to 50 mV, -0.2 to 0.2 V, -1 to 1 V, -10 to 10 V, 0 to 5V
DC current: 4 t0 20 mA (External shunt resistance)
Performance: Indication accuracy ± (0.1 % + 1 digit) of input range
Display:

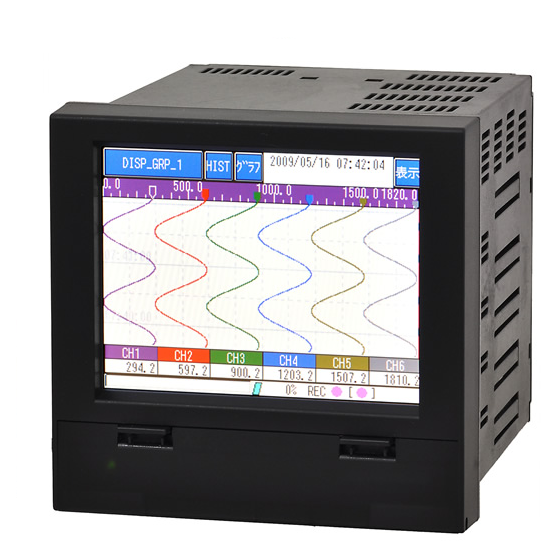

LCD 5.7" TFT(QVGA) with Touch Panel and backlight
Contents:
- Trend display (in vertical or horizontal) selected in the refreshment cycles of 1 sec. to 60 min.
- Bar graph (refresh cycle: 1 sec.)
- Digital display (refresh cycle: 1 sec.)
- Event summary display (alarm and message summary)
- Ethernet log display
- Historical trend display
Recording function:
Recording medium: SD card (max. 2 GB)
SDHC card (max. 32 GB)
Internal memory: about 100 MB
Recording method:
- Writing starts in fixed cycles by turning ON the REC key on the front panel.
- Data is recorded in a new file every time the recording starts.
Data save cycle: Selectable with 1 hour to 1 year
Data format: CSV 120 bytes per sampling (at 6 channels input)
Binary (Data cannot be read directly into Excel, etc.) 32 bytes per 1 sampling (at 6 channels input)
Alarm function: Number of settings: Up to 4 alarms can be set for each channel.
Communication: Ethernet 10 BASE-T: HTTP server, FTP server and Modbus/TCP protocol
General: Mounting method: Panel-mount (vertical panel)
Material: Polycarbonate Glass 10 % UL94-V0 (case, bezel)
Dimensions: Panel mount: 150 (W) × 144 (H) ×181.8 (D)mm
Weight: about 0.9 kg (3 channels), about 6 kg (6 channels)
Power requirement: 100V to 240V AC, 50/60 Hz
Power consumption: 15 VA max. at 100V AC, 25 VA max. at 240V AC)
Option:
Relay card/ DI/DO card:
Relay: 6 points (1a contacts)
DI/DO: input 9 points / output 12 points (open collector)
Communication: RS-485 (MODBUS RTU protocol)
