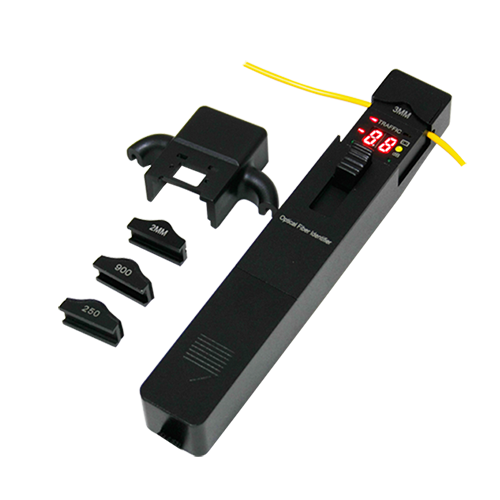

SKYCOM T-FI350 Optical Fiber Identifier (800-1700nm)

Identified Wavelength Range: 800-1700 nm

Identified Signal Type: CW, 270Hz±5%,1kHz±5%,2kHz±5%

Detector Type: Ø1mm InGaAs 2pcs

Adapter Type:

       Ø0.25 (Applicable for Bare Fiber), Ø0.9 (Applicable for Ø0.9 Cable )

       Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable )

Signal Direction: Left & Right LED

Singe Direction Test Range (dBm, CW/0.9mm bare fiber): -46~10 (1310nm); -50~10 (1550nm)

Signal Power Test Range (dBm, CW/0.9mm bare fiber): -50~+10

Signal Frequency Display (Hz): 270, 1k, 2k

Frequency Test Range (dBm, Average Value):

       Ø0.9, Ø2.0, Ø3.0 -30~0 (270Hz,1KHz)-25~0 (2KHz)

       Ø0.25-25~0 (1KHz,2KHz)-20~0 (2KHz)

Insertion Loss (dB, Typical Value): 0.8 (1310nm); 2.5 (1550nm)

Alkaline Battery(V): 9

Operating Temperature (°C): -10-+60

Storage Temperature (°C): -25-+70

Dimension (mm): 196X30.5X27

Weight (g): 200

Accessories Standard:

       T-FI350 Optical Fiber Identifier: 1

       Adapter heads: 4

       Alkaline battery: 1

       User’s manual: 1

       Cotton Stick and Soft Carrying case: 1
