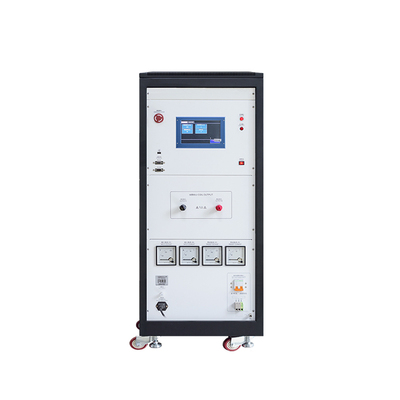

Skylark PFM-1000 Power frequency magnetic field generator

Magnetic field coil: 1 square meter (other specifications can be customized)

Magnetic field intensity: 0A/m~1000A/m continuously adjustable

Output current: AC

Number of experiments: 999

Interval time: 1~99 minutes

Current injection time: 1 second to 99 minutes

Current distortion rate: <5%

Working mode (current range of continuous work): 1A~100A

Working mode (current range of short-time work): >100A~500A, 1~5s, ＞500A~1000A, 1~3s

Operation method: manual, semi-automatic, fully automatic

Power supply: AC220V 50/60Hz

Ambient temperature: 15°C-35°C

Product Standard:

- GB/T 17626.8

- IEC 61000-4-8

- EN 61000-4-8
