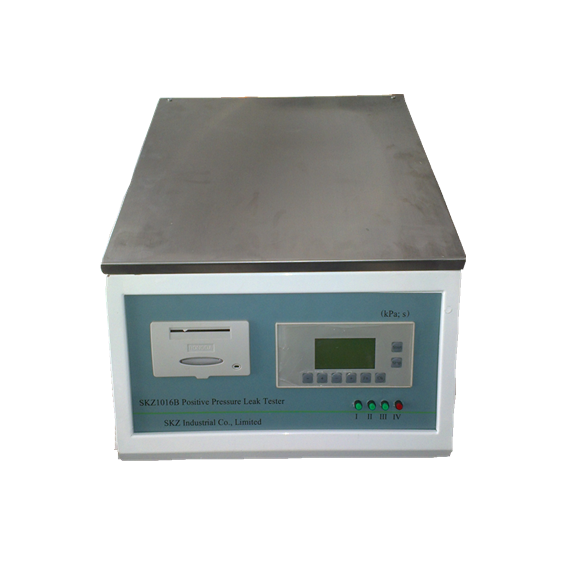

SKZ Industrial SKZ1016B Positive pressure Leak Tester (0.1～15 bar)

- Operational environment and working conditions:

Environment temperature: 5~40℃

Relative humidity: ≤80％

Air pressure range: 86~106kPa

Power: 220V, 50HZ (grounding wire required)

Air source: 0.15 ~ 1.5 Mpa (air source pressure should larger than test pressure)

- Technical parameters:

Test Range : 0.1～15 bar (1 bar=0.1 Mpa)

Accuracy: ±0.1%

Time accuracy: ＜0.01%

Net weight: 25 kg.

Remark: The customer self provide an compression air supply. Pressure range: 0.15~1.5 Mpa.
