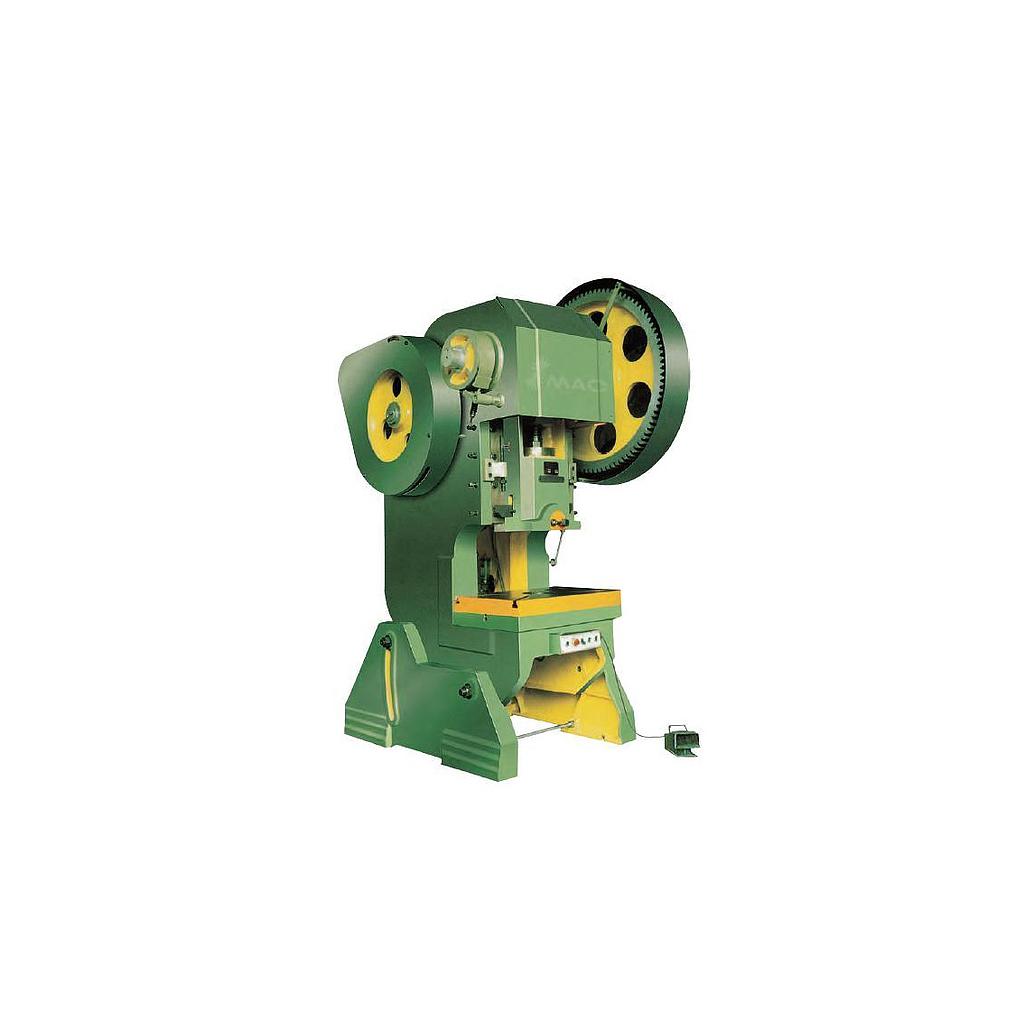

SMAC MP-10 Open Back Inclinable Press

Rated pressure (KN): 100

Slide stroke (mm): 45

Stroke (min-1): 75

Max. die set height (mm): 100

Die set height adjustment (mm): 35

Distance from slide block centre to the frame (mm): 130

Worktable dimensions

Front to back (mm): 240

Right to left (mm): 370

Dimensions of slide block bottom surface

Front to back (mm): 150

Right to left (mm): 170

Size of the handle hole

Diameter (mm): 30

Depth (mm): 55

Inclinable Angle of body (°): 35

Motor

Type: Y90L-6

Power (KW): 1.1

Overall dimension LxWxH (mm): 895 x 713 x 1653

Weight (Kg): 576
