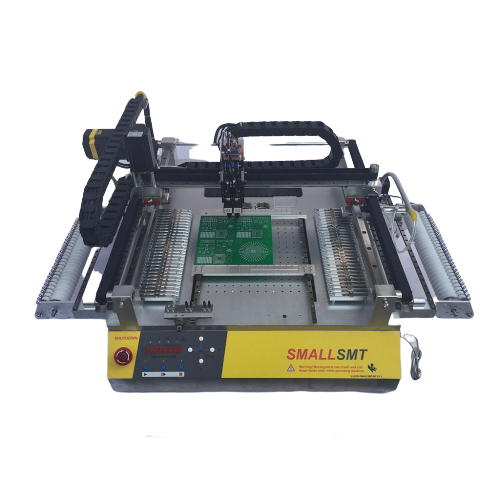

Smallsmt VP-2500DP-CL16 SMT Component Assembly Machine

Name: Smallsmt VP-2500DP-CL16 SMT Component Assembly Machine
Brand: Smallsmt

ModelVP-2500DP-CL16

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Total up to 72x 8mm feeder!

Working Area: 300x250

Nozzle Changer: 6 slot

West Feeder: 28x8mm push

North Feeder:16x8mm CL Feeder

East Feeder: 28x8mm push

Machine Dimensions:1065x935x455mm

VP-2500DP-CL16 SMT mounter using 16 CL feeder

new linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
new winder mechanics on our integrated push feeders
new 3 side feeder possible having slots to move wasted tape under the machine
new bottom camera position changed both cameras reachable for both heads
new mounting options inside the working area
new stronger motors and belts used
new small tray feeder included on north and south side of PCB holder

This new machine is based on the same stable VP-2500DP machine design

16x Yamaha CL Feeder support.

1x 28 push feeder West included

1x 28 push feeder East included

Price:

VP-2500DP-CL16 without feeder cassettes 7500USD

Nozzle changer 6 slot included!

A pick and place machine need feeder lines to supply the components for the placement process.

Our machines have up to 16 CL feeder and up to 56 push feeders on the machine table.

The feeder stock is Yamaha CL feeder compatible

We use new bottom cameras now to improve the vision system quality. Both bottom cameras are now usable for both heads.

X and Y axis motors changed using stronger versions to rise the pick and place speed.

Y axis motor is now a closed loop servo stepper motor. The PCB holder on north side has small tray feeder
