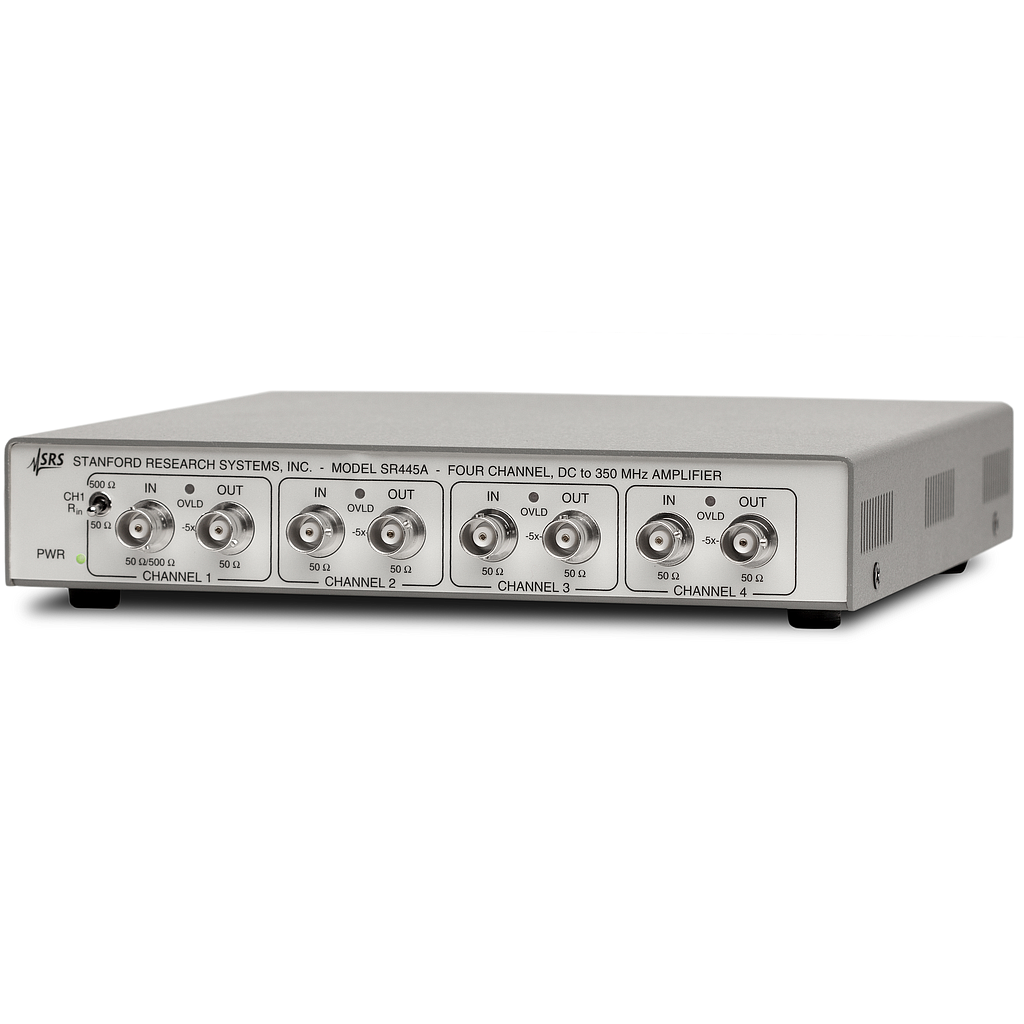

Amplifier channels: 4
Inputs and outputs: 50 Ω (DC coupled)
Bandwidth: DC to 350 MHz (-3 dB)
Rise/fall time: 1 ns (single channel)
Voltage gain: 5 per channel (up to 4 channels can be cascaded)
Input noise: 6.4 nV/√Hz
Operating range:
Inputs: ±200 mV
Outputs: ±1.0 V
Propagation delay: 2.7 ns per channel
Recovery time: 3 ns for a 10× overload
Input protection: ±50 V for <1 ms
Output clamp: ±1.6 V
Output overload detect: ±1.3 V
Crosstalk: -60 dB
Operating temperature: 0 °C to 40 °C, non-condensing
Dimensions: 8.3" × 1.5" × 8.0" (WHL)
Power: 10 W, 100/120/220/240 VAC, 50/60 Hz
