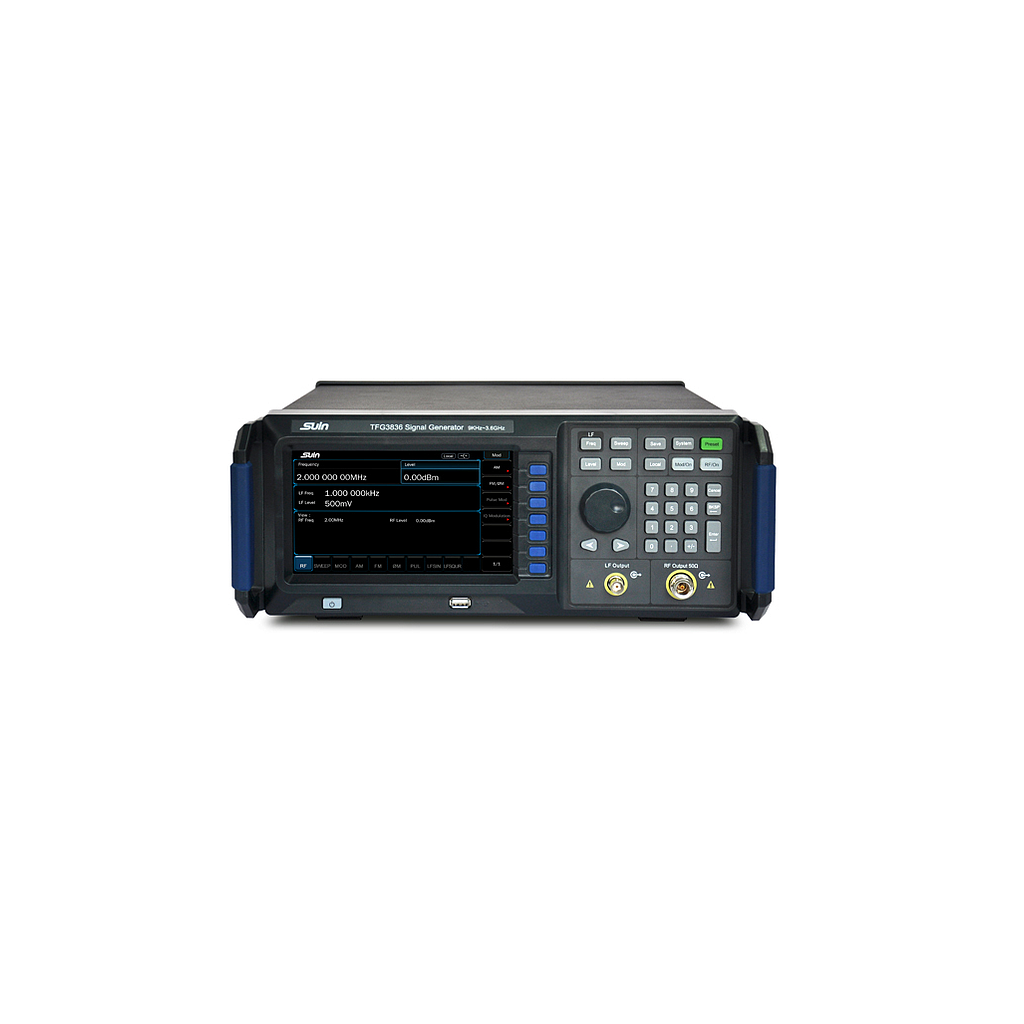

SUIN TFG3836 RF Signal Generator (9kHz ~ 3.6GHz)

Frequency

Range: 9kHz ~ 3.6GHz

Resolution: 0.01Hz

Spectral Purity

Harmonic(CW mod, 1MHz≤f≤3.6GHz, level≤+13 dBm):  <-30 dBc

Non-harmonic(CW mod, level>-10 dBm, carrier offset>10kHz)
100kHz≤f≤2.4GHz: <-60dBc,<-70 dBc (typ.)

2.4GHz<f≤3.6GHz: <-54dBc,<-64 dBc (typ.)

SSB Phase Noise(CW mod, carrier offset=20kHz, 1Hz bandwidth)
100kHz≤f≤2.4GHz: <-105dBc/Hz,<-110 dBc/Hz (typ.)

2.4GHz<f≤3GHz: <-100dBc/Hz,<-105 dBc/Hz (typ.)

3GHz<f≤3.6GHz: <-94dBc/Hz,<-105 dBc/Hz (typ.)

Level

Setting Range: -110dBm to +20dBm

Specified Range: -110dBm to +13dBm

Resolution: 0.01dB

Accuracy: 100kHz≤f≤3.6GHz: ≤ 1 dB, ≤ 0.5 (typ.)(output level:+13dBm ~ -10dBm)≤ 2 dB, ≤ 0.7 (typ.)(output level:-60dBm ~ -110dBm)

VSWR: 1MHz≤f≤3.6GHz <1.8 (typ.)

Internal Modulation Generator (LF)

Waveform: Sine Square

Frequency Range

Sine: DC~200kHz

Square: DC~20kHz

Resolution: 0.01Hz

Voltage Range: AC: 0 ~ 3v, DC:-3V ~ 3V

Sweep

Function: Frequency Sweep, Level Sweep

Modulation

Type: AM, FM, φM, Pulse modulation

General Characteristics

Power: AC 100~240V, 50/60Hz(1±10%), 60VA

Dimension & Weight: 364×154×388 mm, 6kg

Standard Accessories

Power Cord: 1

N-BNC Connector: 1

CD (Software+User’s Guide): 1
