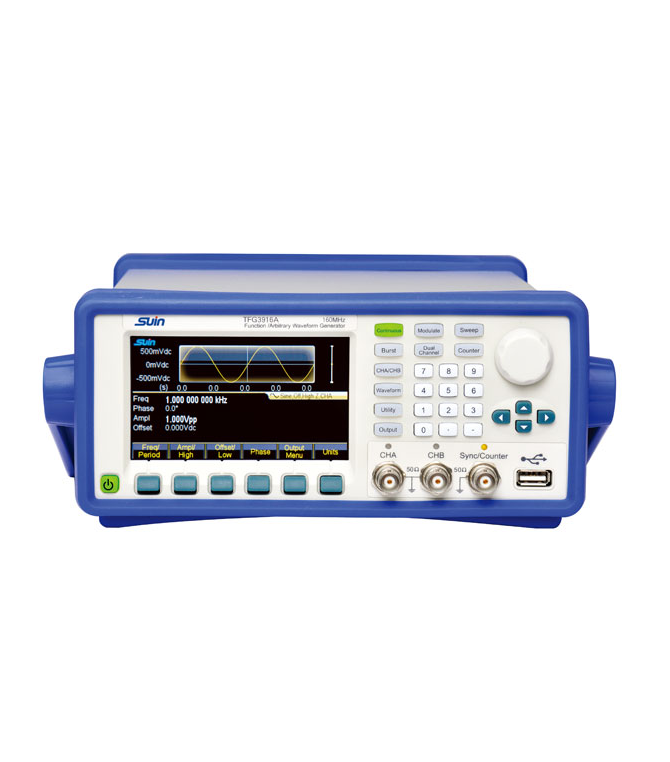

SUIN TFG3908A Arbitrary Waveform Generator (80MHz)

Frequency

Range

Sine: 1μHz ~ 80MHz

Square,  Pulse: 1μHz ~ 30MHz

Arbitrary: 1μHz ~ 30MHz

Ramp: 1μHz ~ 5MHz

Resolution: 1μHz

Accuracy: ±(2ppm+1μHz)

Waveform

Type: 150 kinds, including sine,  square,  ramp,  pulse,  noise, PRBS, Exponential, Logarithm, Tangent, Gaussian, Cardiac, Quake, etc.

Length: 16384 points

Sample Rate: 500MSa/s

Vertical Resolution: 14 bits

Amplitude

Range

Frequency ≤40MHz: 1mVpp ~ 10Vpp(50Ω load)

Frequency ≤80MHz: 1mVpp ~ 5Vpp(50Ω load)

Frequency ≤120MHz: 1mVpp ~ 2.5Vpp(50Ω load)

Frequency >120MHz: 1mVpp ~ 2Vpp(50Ω load)

Accuracy: ±(setting value×1%＋2mVpp)

Flatness(relative to 1MHz Sine)

±0.2dBm,frequency＜80MHz

±0.3dBm,frequency≥80MHz

Offset

Range: ±10Vpk (ac+dc, open circuit)  ±5Vpk(50Ω load)

Accuracy: ±(setting value×1%＋2mV＋0.5% of amplitude)

Modulation

FM, AM, PM, PWM, SUM Modulation

Modulation Frequency: 1mHz ~ 100kHz (FM, AM, PM, PWM), 1mHz~1MHz (Sum)

AM Modulating Depth: 0% ~ 120%

Phase Deviation: 0° ~ 360°

Pulse Width Deviation; 0% ~ 99%

Sum Amplitude: 0% ~ 100%

Source: internal,  external

FSK, 4FSK, QFSK,PSK, 4PSK, QPSK, ASK, OSK

Hope Frequency: 1μHz ~ maximum frequency

Hope Rate: 1mHz ~ 1MHz

Trigger Source: internal,  external

Sweep

Waveform: Sine, Square, Ramp, etc.

Type: Linear, Log, List

Sweep Time: 1ms to 500s

Return/Hold/Interval Time: 0s to 500s

Trigger source: Internal, External or Manual

Burst

Waveform: sine,  square,  Ramp, etc.

Period: 1μs~500s

Burst Count: 1 ~ 100000000

Start/Stop Phase: 0° ~ 360°

Trigger Source: internal,  external,  manual

Channel Coupling

Frequency Coupling: Frequency Ratio, Frequency Difference

Amplitude Offset Coupling: Amplitude Difference, Offset Difference

Waveform Coupling: Comination Amplitude, 0% ~ 100%

SYNC Output

Level: compatible with TTL, rise/fall time≤10nS

Impedance: 50Ω (typical)

Counter

Frequency range: 0.01Hz ~ 350MHz       Resolution: 7 digits/s

Period,  Pulse Width Measurement: 100ns ~ 20s

Duty Cycle Measurement: 0.1% ~ 99.9%

General Characteristics

Power: AC 100 ~ 240V, 45 ~ 65Hz, ＜30VA

Dimension & Weight: 367×256×106 mm, 3.7 kg

Standard Accessories

Power Cord:1pcs

BNC Testing cable:1pcs

CD(software+user's Guide):1pcs
