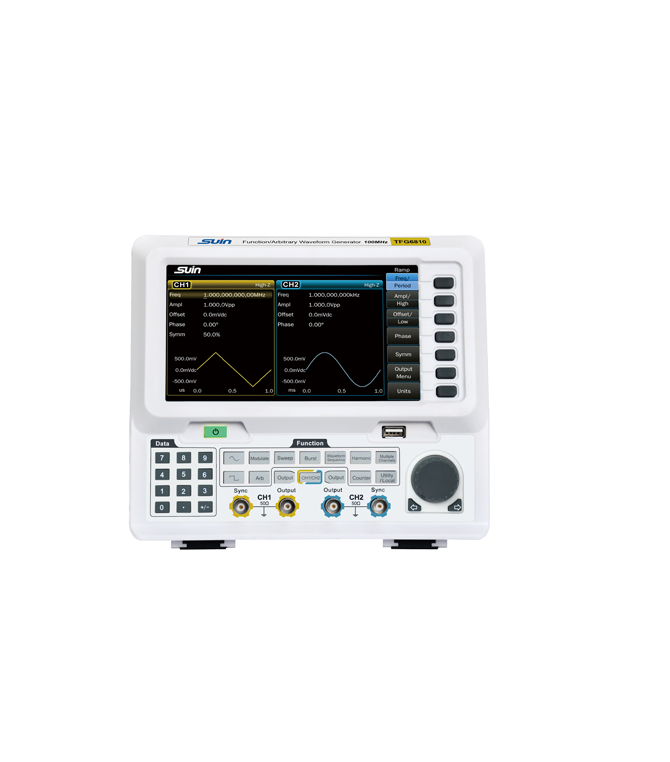

SUIN TFG6810 Arbitrary Waveform Generator (100 MHz, 2 CH)

Frequency

Sine/Square: 1μHz-100MHz

Pulse: 1μHz-25MHz

Ramp: 1μHz-3MHz

PRBS: 1kbps~60Mbps

Noise (-3dB): 100MHz Width

Other: 1μHz~20MHz

Resolution: 1μHz or 12 digits

Accuracy: ±(20ppm + 14pHz)

Waveform

Type: 165   kinds include: Sine, Square, Ramp, Pulse,   Noise, DC, PRBS, user-defined,Arbitrary waveform, user-defined harmonic, etc

Sample rate: 250MSa/s

Vertical resolution: 16 bits

Arbitrary

Sample Rate: 1μSa/s~125MSa/s

Length: 2-16Mpts

Resolution: 16 bits

Square

Rise/Fall Time: ≤4.2ns

Duty Cycle: 0.0001%~99.9999%

Pulse

Rise/Fall Time: ≥8ns

Width: 13ns ~ (period - 13ns)

Amplitude(High Z)

Range:

2mVpp~20Vpp,   frequency≤10MHz

2mVpp~10Vpp, frequency>10MHz

Resolution: 1mVpp or 4digits

Accuracy: ±(of   settings value×1%＋1mV), Sine 1kHz, ≥10mVpp, offset 0V

Offset(High Z)

Range: ±10Vpk(ac＋dc)

Resolution: 1mVdc

Accuracy: ±(|setting   value|×1%＋2mV＋amplitude value ×0.5%)

Sweep

Range: 1μHz ~ upper frequency   limit

Type: Linear, logarithmic

Time: 1ms to 500s

Modulation

FM,AM,PM, PWM, Sum

Carrier Waveform: Sine, Square, Ramp (only   pulse for PWM), etc.

Modulating Waveform: Sine, Square, Ramp, etc.

Modulating Frequency: 1mHz to 100kHz

FSK,4FSK, NFSK,PSK, 4PSK,NPSK, ASK,OSK

Carrier Waveform: Sine, Square, Ramp, ect

Hop Frequency: 1μHz -upper limits

Hop Rate 1mHz to 1MHz

Burst

Mode: Triggered, Gated

Period: 1μs to 600s

Count: 1 to 100000000 cycles

Counter

Frequency Range:

1mHz to 350MHz(DC Couple)

10Hz to 350MHz(AC Couple)

Resolution: 8 digits/s

Period and Pulse Width Measurement: 100ns to 20s

Duty Cycle Measurement: 0.1% to 99.9%

General Characteristic

Power

AC   100~240V, 50/60Hz ±10%

AC   100~120V, 400Hz ±10%

Dimension & Weight

226mm×200mm×125mm, Approx. 2.9kg

226mm×200mm×166mm, Approx. 3.3kg

(if amplifier power is selected)

Accessory:

Power Cord: 1pcs

BNC cable: 1pcs

CD(software+manual): 1pcs
