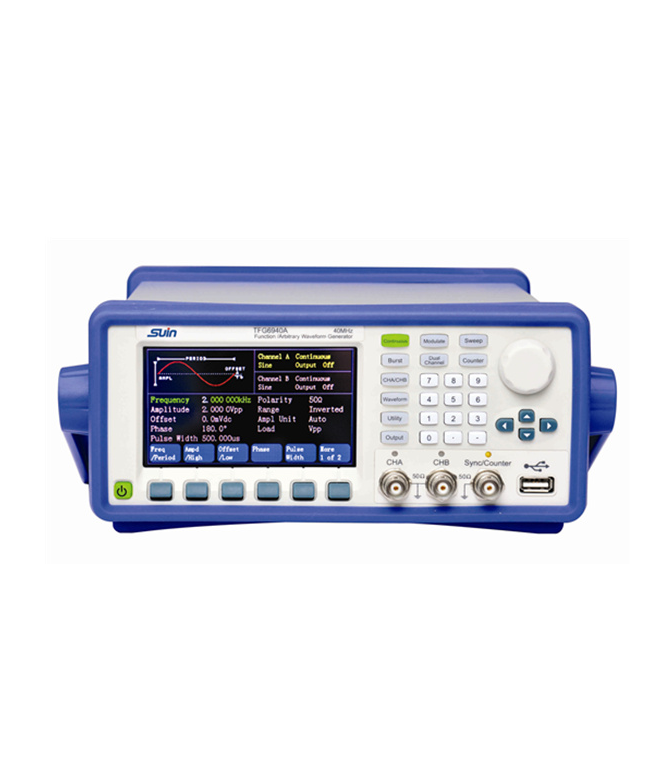

SUIN TFG6920A Arbitrary Waveform Generator (20MHz)

Frequency

Range

Sine: 1μHz ~ 20MHz

Square, Pulse: 1μHz ~ 10MHz

others: 1μHz ~ 5MHz

Resolution: 1μHz

Accuracy: ±(50ppm+1μHz)

Waveform

Type: Sine, Square, Ramp, Pulse, Noise, 50 built-in waveforms + 5 user-defined waveforms

Length: 4096 points

Sample Rate: 120MSa/s

Vertical Resolution: 14 bits(CHA); 10 bits(CHB)

Amplitude Characteristics

Range

Frequency ≤20MHz

0.1mVpp to 10Vpp(50Ω)

0.2mVpp to 20Vpp(Open circuit)

Frequency >20MHz

0.1mVpp to 7.5Vpp(50Ω)

0.2mVpp to 15Vpp(Open circuit)

Resolution

1mVpp (Amplitude≥1Vpp, load 50Ω)

0.1mVpp(Amplitude<1Vpp, load 50Ω)

2mVpp (Amplitude≥2Vpp, open circuit)

0.2mVpp(Amplitude<2Vpp, open circuit)

Accuracy: ±(1% of setting＋1mVpp)(1kHz Sine, 0V offset, auto range)

Offset Characteristics

Range: ±5Vdc (50Ω), ±10Vdc (open circuit)

Accuracy: ±(1% of setting+1mVdc)

Modulation Characteristics (CHA)

FM,AM,PM,PWM,SUM

Carrier Waveform: Sine, Square, Ramp, etc. (only Pulse for PWM）

Modulating Waveform: Sine, Square, Ramp, etc.

FSK: Carrier Waveform: Modulating Frequency: 1μHz ~ 100kHz

BPSK: Carrier Waveform: Sine, Square, Ramp, etc.

Source: Internal/External

Sweep Characteristics (CHA)

Carrier Waveform: Sine, Square, Ramp, etc.

Type: Linear or Logarithmic

Sweep Time: 5ms~500s

Hold/Return Time: 0s~500s

Trigger Source: Internal, External and Manual

List Sweep: List Length: 600 pcs

Burst Characteristics (CHA)

Carrier Waveform: Sine, Square, Ramp, etc.

Burst Count: 1 ~ 1000000

Period: 1μs ~ 500s

Trigger Source: Internal, External, Manual

Counter

Frequency Range: 10mHz ~ 350MHz, resolution: 6 digits/s

Period, Pulse Width: 100ns ~ 20s

Duty Cycle: 1% ~ 99%

General   Characteristics

Power: AC 100 ~ 240V, 45 ~ 65Hz, < 30VA

Dimension & Weight: 334×256×106 mm, Approx.3 kg

Standard Accessories

Power Cord: 1pcs

BNC Cable: 1pcs

CD(Software+User's Guide): 1pcs
