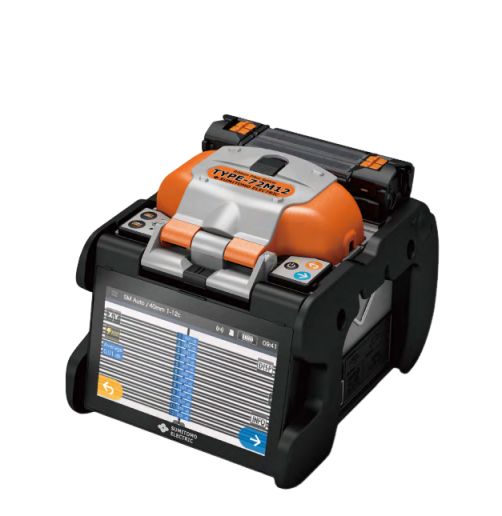

SUMITOMO TYPE-72M12 Ribbon fiber splicer (Splice time 11s; Heating time 35s)

Optical fiber requirements:

- Material: Silica glass

- Profile types: Single/SMF(G652),MMF(G651),DSF(G653),NZDSF(G655),BIF(G657)

- Fiber count: 1,2,4,5,6,8,10,12

- Fiber diameter:

Coating diameter: Single fibre coating dia: 200um,250um,500um,900um; Ribbon fibre thickness: 200-400um

- Applicable cable: Drop cable (2.0x3.1or 2.6 mmm), Indoor cable (2.0x1.6 mm)

- Cleave length: 10mm

Standard performance

- Splice loss (typical): SMF 0.05dB, MMF 0.02dB, DSF 0.08dB, NZDSF 0.08dB

- Splice time (typical): 11sec (SM 12c Quick Mode), 14 sec (SM 12c Std. Mode)

- Heating time: 35sec(FPS-6 sleeves, 40mm 1-12c Quick Mode)

- Splice & Heat cycles per battery full charge: Approx. ~180

- Fiber view & magnification: 2 CMOS cameras observation; 23X (zoom: 46X)

- Proof test: 1.96 - 2.09N

- Applicable protection sleeve: 60mm, 40mm & Sumitomo Electric Nano sleeves

Programs

- Splice programs: Max. 300

- Heating programs: Max. 100

Functions

- Splice image capture/ Splice data storage: 200 images /10,000 splice data (internal memory only) 50,200/20,000 (with 16GB SD card)

- Automatic fibre count detection

- Automatic arc calibration: Automatically compensates for environmental condition changes

- Auto clamping adjustment system

- Reversible fibre holder system

- Dual automatic independent heaters

- User-selectable heater clamp operation

- Display of remaining Splice & Heat cycles (battery mode)

- onboard user training video

- Wireless LAN connectivity (Option)*

Size/Weight

- Size: 128(W) x 154(D) x 130(H) mm (without anti-shock rubber)

- Weight: 1.8kg (without Battery) / 2.1kg (with Battery BU-16)

- Monitor: 5.0" touch screen color LCD display

Terminals:

- DC output: DC 12V (for JR-6+)

- USB port: USB 2.0 (mini-B type)

- Storage media: SD/SDHC memory card MAX32GB

Power supply:

- AC input: AC100~240V, 50/60Hz (ADC-16)

- DC input: DC 10~15V, 7.5A

- Battery pack: Li-ion 10.8V, 6,400mAh (BU-16)

Electrode life: 1500 arc discharges
