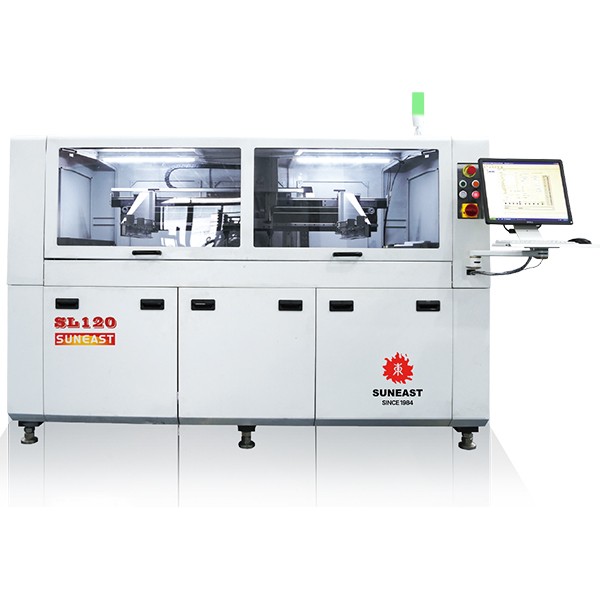

- Basic Parameters
Screen Frame Size: 1000(X)×300(Y)—1500(X)×650(Y) (mm); Thickness：20-40mm
Min PCB(mm): 80(X)×50(Y) (mm)
Max PCB(mm): 1200(X)×360(Y) (mm)
Thickness: 0.2mm～6mm（Use jig when pcb less than 0.4mm）
Curve: <1%（Diagonal measurement）
PCB Backside Part Height: 15mm
Conveyor Height: 900±40mm
Support: Magnetic support, Magnetic piece, Vacuum chamber（Option）
Clamp: Side clamp and top clamp
Edge Distance: PCB process edge ≥2.5mm,without PCB edge(option)
Conveyor Speed: 0~1500mm/s,increment 1mm
Conveyor Belt: U type sync belt
Stopper method: Air Cylinder
Stopper position: Set the PCB stopper position according to the size of board
Flow direction: Set by software
- Print System
Print Speed: 5-200mm/s adjustable
Print Head: Step motor drive scraper lifting
Scraper: Steel scraper，rubber scraper（option）
Scraper Angle: 60°
Scraper Pressure: 0~20kg
- Vision System
Substrate Separation: Three-section Substrate Separation speed：0.1-20mm/s distance：0-20mm
Alignment Position method: Mark automatic alignment
Camera: Germany BASLER，1/3” CCD，640*480pixel，pixel size:5.6μmx5.6μm
Acquire image method: Up/under double photo
Camera Light: Coaxial light,Ring light four kinds light can adjustable
View Range: 9mm*7mm
Mark dimensions: Diameter or Side length 1mm～2mm,allowable offset 10%
Mark Shape: Cir,Rec, or rhombus etc
Mark Position: PCB dedicated mark or PCB pad
2D detection: Standard
- Accuracy
Table Adjustment Range: X=±10mm,Y=±10mm, θ=±1.5°
Positional Accuracy: ±0.01mm
Printing Accuracy: ±0.025mm
- Time
Cycle Time: <10s (ex print, cleaning time)
Convert line Time: <5min
Programming Time: <10min
- Control System
Computer Configuration: Industrial PC，Windows official system
System Language: Chinese、English
Pre and next machine :Connection SMEMA
User authorization: User PW and Senior PW set
- Cleaning System:
Cleaning System: Dry and Wet,vacuum model
Liquid Level Detection: Liquid level auto alarm detection
- Power Parameters
Main Power Supply: AC 220V±10% 50/60HZ Single phase
Total Power: Approx.3kw
Main Air Supply: 4.5～6kgf/cm2
Machine Weight: Approx. 1500Kg
Machine Dimension: 2350(L)x1350(W)x1590(H)mm
- Option
Pneumatic Top Clamp: Standard
Top clamp + side clamp: For PCB (thickness ≤1mm)
Vacuum Adsorption and unloadding: For PCB (thickness ≤1mm) and FPC
Auto tin added: /
Auto Loading and Unloading: /
Flexible and Universal Suppor: For the double-sided PCB(PCB backside parts Height ≤ 9mm)
Automatic Positioning of screen frame: /
PCB Thickness Auto Adjustment Function: Standard
Squeegee Pressure Feedback Function: /
Air conditioner: Customer can buy by themselves
The rest of Solder Paste on the stencil Monitoring System: /
SPI close loop
UPS power off protection: UPS 15min power off protection
Industry 4.0: Bar code trace function,production analysis etc
