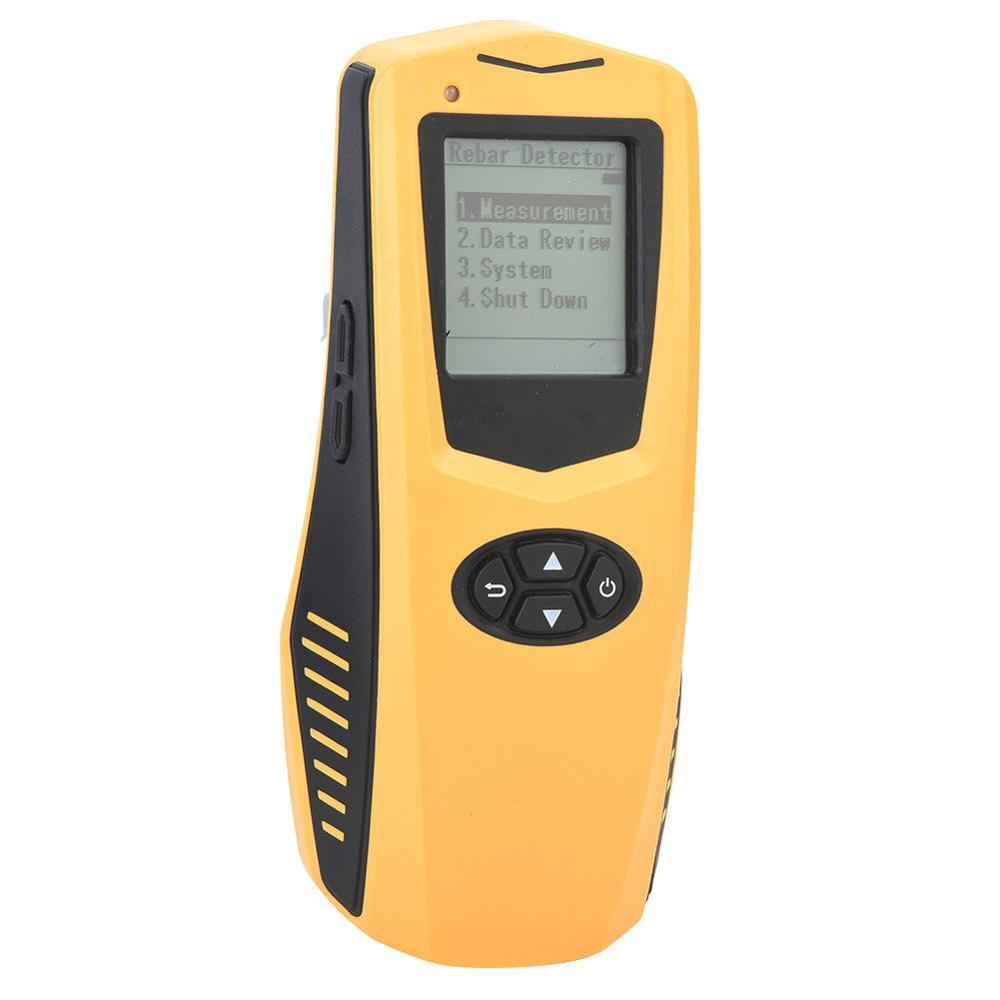

T-measurement TEM-620XH Basic Rebar Scanner (30-120mm)

Technical Specification:

Diameter measuring range(mm): Φ6 - 50

Measuring Range(mm)

Location Range: 1-120

First Range: 1-60

Second Range: 30-120

Thickness measuring accuracy(mm)

The measuring range (mm): 1 - 40, Accuracy: ±1

The measuring range (mm): 41 - 60, Accuracy: ±2

The measuring range (mm): 61 - 80, Accuracy: ±3

The measuring range (mm): 81 - 100, Accuracy: ±5

The measuring range (mm): 101 - 120, Accuracy: ±6

Rebar Location Accuracy

The measuring range (mm): 1 - 60, Accuracy: ±3

The measuring range (mm): 61 - 120, Accuracy: ±6

Diameter measuring modes: optional

JGJ measurement: optional

Data storage: optional

Off time: Automatic
