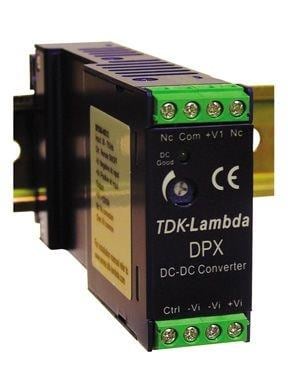

TDK-Lambda DPX40-48WS12 Isolated DC-DC, DIN Rail, Input 18-75VDC, Output 12V 3.333A, 40W
Manufacturer: TDK-Lambda Model: DPX40-48WS12 - Contact
Width: 24.5 mm
Height: 57.6 mm
Length: 125 mm
Industry: Industrial
Dimensions: 24.5 mm x 57.6 mm x 125 mm
Unit Weight: 182 g
Output Power: 40 W
Input Voltage: 18 V to 75 V
Mounting Style: DIN Rail
Isolation Voltage: 1.6 kV
Number of Outputs: 1 Output
Input Voltage - Max: 75 V
Input Voltage - Min: 18 V
Input Voltage, Nominal: 48 V
Output Current-Channel 1: 3.333 A
Output Voltage-Channel 1: 12 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
