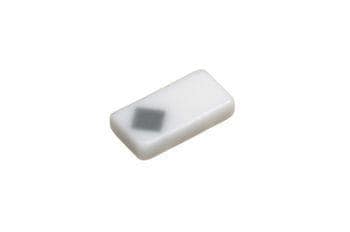

TDK ANT016008LCS2442MA2 Passive Antenna CERAMIC CHIP ANTENNA 2.4GHz WLAN+BT
Manufacturer: TDK Model: ANT016008LCS2442MA2 - Contact
VSWR: 3
Width: 0.8 mm
Height: 0.4 mm
Length: 1.6 mm
Bandwidth: 42 MHz
Impedance: 50 Ohms
Unit Weight: 1.510 mg
Mounting Style: PCB Mount
Number of Bands: 1 Band
Center Frequency: 2.45 GHz
Mechanical Style: Chip
Maximum Frequency: 2.484 GHz
Minimum Frequency: 2.4 GHz
Termination Style: SMD/SMT
Protocol - Sub GHz: IoT, ISM
Protocol - WiFi - 802.11: 802.11, WLAN, WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
