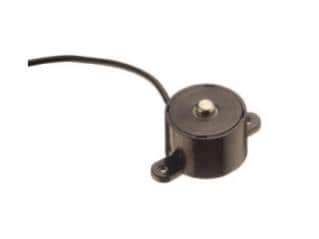

TE CONNECTIVITY SENSORS FC2231-0000-0050-L Force Sensors & Load Cells MF LC:COMP ONLY
Manufacturer: TE CONNECTIVITY SENSORS Model: FC2231-0000-0050-L - Contact
Height: 19.4 mm
Length: 34 mm
Accuracy: 1 %
Diameter: 26 mm
Output Type: Voltage
Sensor Type: Load Cell
Unit Weight: 16.500 g
REACH - SVHC: Details
Mounting Style: Wire Leads
Output Voltage: 500 mV to 4.5 V
Operating Force: 50 lbf
Supply Voltage - Max: 5 VDC
Supply Voltage - Min: 3.3 VDC
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
