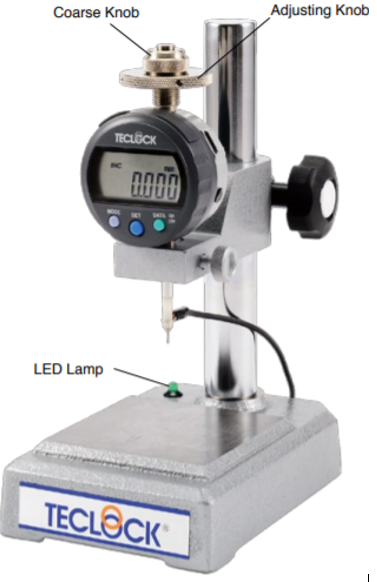

TECLOCK SD-465A Digital Sensor Gauge (12-150mm/0.001mm)
Manufacturer: TECLOCK Model: SD-465A Origin: Japan Guarantee: 12 Month - Contact
Manufacturer: TECLOCK
Model: SD-465A
Origin: Japan
Warranty: 12 months
Measuring Range: 12(150) mm
Resolution: 0.001 mm
Gauge Error: ±0.003 mm
Specimen Table Size: W80×D80
Power Supply: DC 3V (AA size battery×2)
Weight: 3.4 kg
Catalog
• Springs and pressed parts which are used for precision equipments, computer terminal and home
electric goods can be measured just before their shapes are changed due to measuring force.
• If detecting contact between sensor (contact point) and work piece by energizing, it simultaneously
sounds (buzzer) when LED lamp is lighting.. Then read the value which is detected.
• Micro-motion is adjusted by 12mm with upper knob.
• Work piece of maximum 150mm can be measured by using block gauge.
• As detection is implemented by energizing, work piece which is not energized can not be measured.
