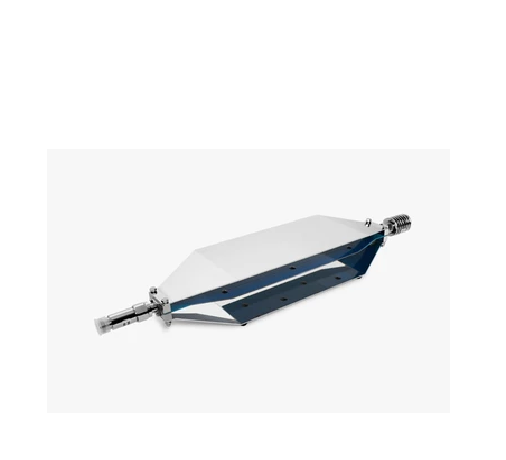

TEM cell dimensions:
Length: 390 mm
Width: 100 mm
Height: 62 mm
Septum height: 28 mm
TEM cell connectors: N-female
Nominal cell impedance: 10W (limited by supplied 50 Ohm Termination)
Wave impedance: 377 Ohm
Maximum RF input power: 25W
Input return loss: S11 up to 3.15 GHz < -15dB
Transmission loss: up to 3 Ghz < 3 dB, up to 6 Ghz < 4 dB
DC-Block 50V-6GHz-N
Connectors: N-Male/Female
Nominal impedance: 50 Ohm
Max. continuous RF power: 2W
Max. continuous RF voltage: 50V RMS
Frequency: 500kHz to 6 GHz
VSWR: ≤ 1.2
RF-Termination 50Ω-3GHz-25W-N
Connector: N-Male
Nominal impedance: 50 Ohm
Max. continuous RF power: 25W
Frequency: DC to 3 GHz
VSWR: ≤ 1.2
Third order intermodulation: ≤ 120 dBc
