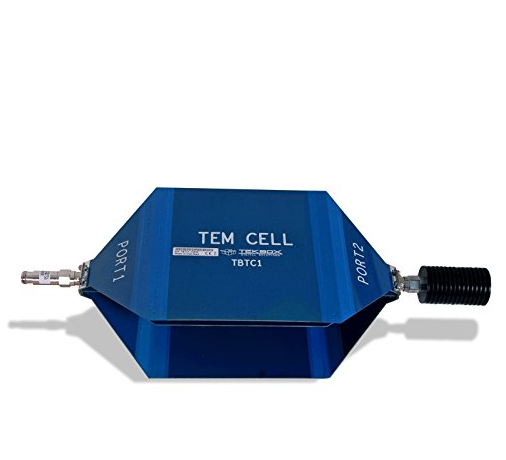

Manufacturer: Tekbox
Model: TBTC1
Warranty: 12 months
TEM cell dimensions:
Length: 390 mm
Width: 200 mm
Height: 108 mm
Septum height: 50 mm
Rectangular area under the septum: 19 cm x 13 cm x 5 cm
TEM cell connectors: N-female
Nominal cell impedance: 50 Ohm
Wave impedance: 377 Ohm
Maximum RF input power: 25W (limited by supplied 50 Termination)
Input return loss: S11 up to 1.2 GHz < -20dB, up to 2.1 GHz < -17dB, up to 3GHz < -14
Transmission loss: up to 1.4 GHz < 1 dB, up to 2.1 GHz < 3dB, up to 3 GHz < 6dB
