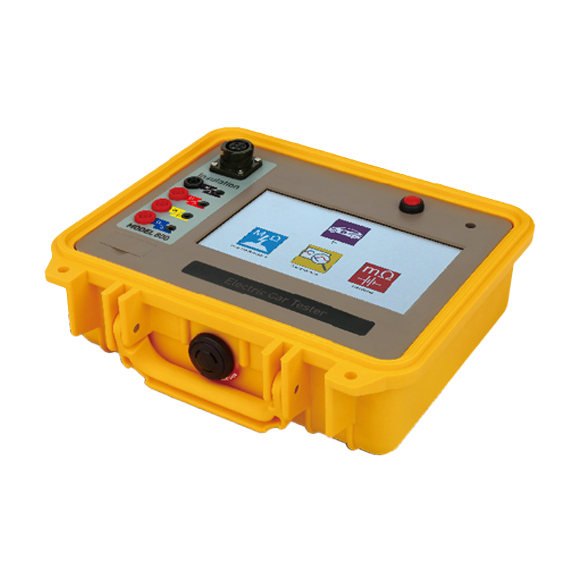

TEKON 800 EV, HEV Diagnosis
Manufacturer: TEKON Model: 800 - Request a Quotation
- Request a Quotation
- Contact
EV, HEV battery pack IBMSL motor control unit MCUL power, cable assembly sensor electrical performance diagnosis
Measurement of EV/HEV inspection items, including judgment of acceptable/hon- acceptable according to EWHEV inspection directives
Enables the user to download, view and analyze stored data, and makeup reports
Generates standardized inspected records and system performance reports

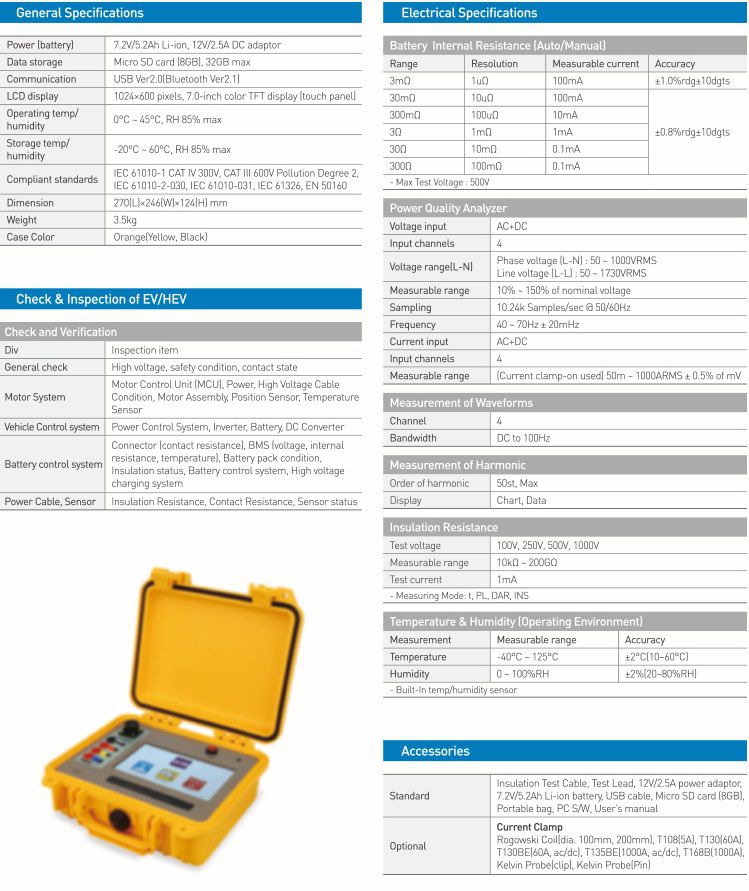

Measures internal resistance Iml of EV/HEV battery pack 1500V max
Measures three-phase power (1P2W, 3POW, 3P4W)
Measures waveforms (4 channels)
Measures harmonic spectrum (up to 50th harmonic)
Measures insulation resistance
Measures earth resistance (optional)
Removable wireless printer applied
