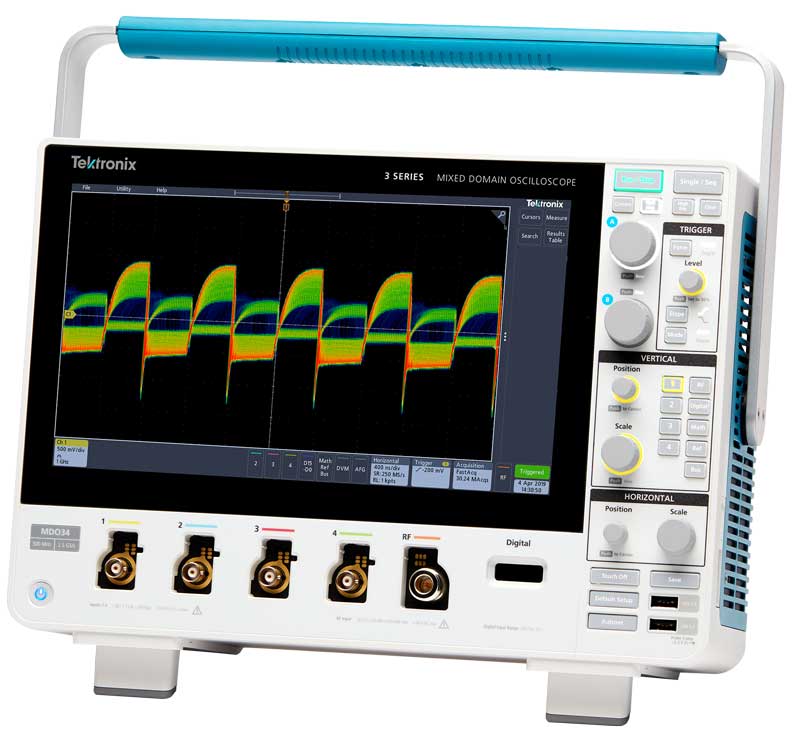

Analog channel bandwidth 200 MHz
Rise time (typical, calculated)
(10 mV/div setting with
50 Ω input termination) 2 ns
Sample rate (1 ch) 2.5 GS/s
Record length (1 ch) 10 M
Digital channels with 3-MSO option 16
Arbitrary Function Generator outputs with 3-AFG option
Spectrum analyzer channels (Option)
Vertical system analog channels
Hardware bandwidth limits
≥350 MHz models 20 MHz or 250 MHz
100 MHz and 200 MHz models 20 MHz
Input coupling AC, DC
Input impedance 1 MΩ ±1%, 50 Ω ±1%
Input sensitivity range
1 MΩ 1 mV/div to 10 V/div
50 Ω 1 mV/div to 1 V/div
Vertical resolution
8 bits (11 bits with Hi Res)
Maximum input voltage
1 MΩ 300 V RMS CAT II with peaks ≤ ±425 V
50 Ω 5 V RMS with peaks ≤ ±20 V
input/output ports
USB 2.0 high-speed host port Supports USB mass storage devices and keyboard. Two ports on front and one port on rear of instrument.
USB 2.0 device port Rear-panel connector allows for communication/control of oscilloscope through USBTMC or GPIB (with a TEK-USB-488).
Printing Print to network printer or to a printer that supports e-mail printing. Note: This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
LAN port RJ-45 connector, supports 10/100 Mb/s
HDMI port 19-pin, HDMI type connector
