TEKTRONIX RSA306B USB Real Time Spectrum Analyzer (9 kHz - 6,2 GHz) | EMIN.COM.MM

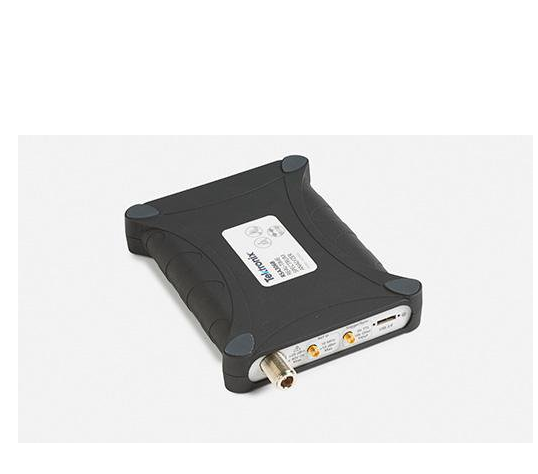

TEKTRONIX RSA306B USB Real Time Spectrum Analyzer (9 kHz - 6,2 GHz)

Name: TEKTRONIX RSA306B USB Real Time Spectrum Analyzer (9 kHz - 6,2 GHz)
Brand: TEKTRONIX
Price: 49400000 MMK
Availability: OutOfStock

ManufacturerTEKTRONIX

ModelRSA306B

OriginChina

49,400,000 Kyat

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer: Tektronix
Model: RSA306B

Datasheet

Option

SignalVu-PC application-specific options
SignalVu-PC-SVE requires the Microsoft Windows 7 or 8/8.1, 64-bit operating system. The base software is free, included with the instrument, and is also available to download from www.tek.com. Option keys are sent by email which you then enter into the application. Fully functional trial options can be activated locally for 30 days.

The following SignalVu-PC-SVE options add functionality and value to your measurement solution:

- Option SVA: AM/FM/PM/Direct audio analysis
- Option SVT: Settling Time (frequency and phase) measurement
- Option SVM: General purpose modulation analysis
- Option SVP: Advanced Signal Analysis (including pulse measurements)
- Option SVO: Flexible OFDM Analysis
- Option SV23: WLAN 802.11a/b/g/j/p measurement application
- Option SV24: WLAN 802.11n measurement application (requires option SV23)
- Option SV25: WLAN 802.11ac measurement application (requires option SV24). Limited to 40 MHz bandwidth on RSA306
- Option SV26: APCO P25 measurement application
- Option SV27: Bluetooth Basic LE Tx measurement
- Option MAP: Mapping and signal strength
- Option CON: SignalVu-PC live link to the MDO4000B series mixed-domain oscilloscopes
- Option SIGNALVU-PC-SVE SV2C: Live Link to MDO4000B and WLAN 802.11a/b/g/j/p/n/ac measurements (includes options CON, SV23, SV24 and SV25)

Service options

- Opt. C3: Calibration Service 3 Years
- Opt. C5: Calibration Service 5 Years
- Opt. D1: Calibration Data Report
- Opt. D3: Calibration Data Report 3 Years (with Opt. C3)
- Opt. D5: Calibration Data Report 5 Years (with Opt. C5)
- Opt. R3: Repair Service 3 Years (including warranty)
- Opt. R5: Repair Service 5 Years (including warranty)

Recommended accessories

- RSA300CASE: Soft case with shoulder-strap
- RSA300TRANSIT: Hard-sided transit case for RSA300 with room for USB cable and small accessories. Pelican model Stormcase iM2100
- RSA306RACK: Rackmount with slots for two RSA306. 19 inch rack with cover for unused slot
- 119-6609-xx: BNC whip antenna
- 103-0045-xx: N-BNC adapter
- 119-6594-xx: Beam antenna, 824 MHz to 896 MHz
- 119-6595-xx: Beam antenna, 896 MHz to 960 MHz
- 119-6596-xx: Beam antenna, 1710 MHz to 1880 MHz
- 119-6597-xx: Beam antenna, 1850 MHz to 1990 MHz
- 119-6970-xx: Magnetic mount antenna, 824 MHz to 2170 MHz (requires adapter 103-0449-00)
- 119-7246-xx: Pre-filter, general purpose, 824 MHz to 2500 MHz, Type-N (f) connector
- 119-7426-xx: Pre-filter, general purpose, 2400 MHz to 6200 MHz, Type-N (f) connector
- 012-0482-xx: Cable, 50 Ω, BNC (m) 3 foot (91 cm)
- 174-4977-xx: Cable, 50 Ω, straight Type-N (m) and angled Type-N (m) connector, 1.6 foot (50 cm)
- 174-5002-xx: Cable, 50 Ω, Type-N (m) to Type-N (m) connector, 3 foot (91 cm)
- 119-4146-xx: EMCO E/H-field probes

Specifications

Specifications are valid within the following conditions:

Operate the instrument in an environment that meets the temperature, altitude, and humidity characteristics listed in these specifications.
Warm up time is 30 minutes after connecting to the PC and starting the SignalVu application.

Frequency

RF input frequency range: 9 kHz to 6.2 GHz

Frequency reference accuracy

Initial: ±3 ppm + aging (18 °C to 28 °C ambient, after 20 minute warm up)
±25 ppm + aging (-10 °C to 55 °C ambient, after 20 minute warm up), typical
Aging (typical): ±3 ppm (1st year), ±1 ppm/year thereafter

External frequency reference input

Input frequency range: 10 MHz ±10 Hz
Input level range: -10 dBm to +10 dBm sinusoid
Impedance: 50 Ω

Center frequency resolution

Block IQ samples: 1 Hz
Streamed ADC samples: 500 kHz

Amplitude

RF input impedance: 50 Ω

RF input VSWR (typical): ≤ 1.8:1 (10 MHz to 6200 MHz, reference level ≥ +10 dBm)

Maximum RF input level without damage

DC voltage: ±40 V_DC
Reference level ≥ –10 dBm: +23 dBm (continuous or peak)
Reference level < –10 dBm: +15 dBm (continuous or peak)

Maximum RF input operating level

The maximum level at the RF input for which the instrument will meet its measurement specifications.

Center frequency < 22 MHz (low-frequency path): +15 dBm
Center frequency ≥22 MHz (RF path): +20 dBm

Amplitude accuracy at all center frequencies

Center frequency	Warranted (18 °C to 28 °C)	Typical (95% confidence) (18 °C to 28 °C)	Typical (-10 °C to 55 °C)
9 kHz - < 3 GHz	±2.0 dB	±1.25 dB	±3.0 dB
≥ 3 GHz - 6.2 GHz	±2.75 dB	±2.0 dB	±3.0 dB

Reference level +20 dBm to -30 dBm, alignment run prior to testing.

Applies to corrected IQ data, with signal to noise ratios > 40 dB.

Accuracy may degrade up to ±0.6 dB after storage at maximum storage temperature, recovers within 24 hours

Intermediate frequency and acquisition system

IF bandwidth: 40 MHz

ADC sample rate and bit width: 112 Ms/s, 14 bits

Real-time IF acquisition data (uncorrected)

112 Ms/s, 16-bit integer real samples

40 MHz BW, 28 ±0.25 MHz Digital IF, uncorrected. Corrected values are stored with saved files

Block streaming data at an average rate of 224 MB/s

Block baseband acquisition data (corrected)

Maximum acquisition time: 1 second
Bandwidths: ≤ 40 /( 2^N) MHz, 0 Hz Digital IF, N ≥ 0
Sample rates: ≤ 56 / (2^N) Msps, 32-bit float complex samples, N ≥ 0

Channel amplitude flatness

±1.0 dB, 18 ⁰C to 28 ⁰C

±2.0 dB, -10 ⁰C to 55 ⁰C, typical

Reference level +10 dBm to -30 dBm, alignment run before testing

Applies to corrected IQ data, with signal to noise ratios > 40 dB

Trigger

Trigger/sync input

Voltage range: TTL, 0.0 V – 5.0 V
Trigger level, positive-going threshold voltage: 1.6 V minimum; 2.1 V maximum
Trigger level, negative-going threshold voltage: 1.0 V minimum; 1.35 V maximum
Impedance: 10 kΩ

IF power trigger

Threshold range: 0 dB to -50 dB from reference level, for trigger levels > 30 dB above the noise floor
Type: Rising or falling edge
Trigger re-arm time: ≤100 μs

Noise and distortion

Displayed Average Noise Level (DANL)

Reference level = -50 dBm, input terminated with 50 Ω load, log-average detection (10 averages)

Center frequency	Frequency range	DANL (dBm/Hz)	DANL (dBm/Hz), typical
< 22 MHz (LF path)	100 kHz - 42 MHz	-130	-133
≥ 22 MHz (RF path)	2 MHz - 5 MHz	-145	-148
	> 5 MHz - 1.0 GHz	-160	-163
	> 1.0 GHz - 2.0 GHz	-158	-161
	> 2.0 GHz - 4.0 GHz	-155	-158
	> 4.0 GHz - 6.2 GHz	-150	-153

Phase noise

Phase noise measured with 1 GHz CW signal at 0 dBm

The following table entries are in dBc/Hz units

	Center frequency
Offset	1 GHz	10 MHz (typical)	1 GHz (typical)	2.5 GHz (typical)	6 GHz (typical)
1 kHz	-80	-108	-88	-75	-70
10 kHz	-84	-118	-87	-80	-75
100 kHz	-90	-120	-92	-90	-85
1 MHz	-110	-122	-120	-110	-105

Residual spurious response: < -85 dBm (Reference level ≤ -50 dBm, RF input terminated with 50 Ω)
Exceptions: < -78 dBm: Harmonics of 112 MHz in the range 1680-2688 MHz; 4750, 4905-4965 MHz

Input related spurious response (SFDR)

≤ -50 dBc, 18 ⁰C to 28 ⁰C, with auto settings on and signals 10 dB below reference level of -30 dBm

≤ -50 dBc, -10 ⁰C to 55 ⁰C, typical, with auto settings on and signals 10 dB below reference level, reference level -30 dBm)

Exceptions, typical:

IF feedthrough: ≤ -30 dBc for 2340 MHz - 2420 MHz

Image: ≤ -30 dBc for 4570 MHz - 4760 MHz; ≤ -45 dBc for 2860 MHz - 3460 MHz

RFx2LO: ≤ -40 dBc for 1850-1960, 3700-4000 MHz; -45 dBc for 3890 – 3910 MHz

2RFx2LO: ≤ -45 dBc for 2140, 4270 MHz

Residual FM: < 10 Hz_P-P (95% confidence)

3^RD order IM distortion

Two input CW signals, 1 MHz separation, each input signal level 5 dB below the reference level setting at the RF input

Reference level at-15 dBm disables Preamp; reference level at -30 dBm enables Preamp

Center frequency 2130 MHz: ≤ -60 dBc at reference level -15 dBm, 18 ⁰C to 28 ⁰C
≤ -60 dBc, at reference level -15 dBm, -10 ⁰C to 55 ⁰C, typical
40 MHz to 6.2 GHz, typical: < -58 dBc at reference level = -10 dBm
< -50 dBc at reference level = -50 dBm

3^RD order intercept (TOI)

Center frequency 2130 MHz: ≥ +10 dBm at reference level -15 dBm, 18 ⁰C to 28 ⁰C
≥ +10 dBm, at reference level -15 dBm, -10 ⁰C to 55 ⁰C, typical
40 MHz to 6.2 GHz, typical: +14 dBm at reference level -10 dBm
-30 dBm at reference level -50 dBm

2^ND harmonic distortion, typical

< -55 dBc, 10 MHz to 300 MHz, reference level = 0 dBm

< -60 dBc, 300 MHz to 3.1 GHz, reference level = 0 dBm

< -50 dBc, 10 MHz to 3.1 GHz, reference level = -40 dBm

Exception: < -45 dBc in the range 1850-2330 MHz

2^ND harmonic intercept (SHI)

+55 dBm, 10 MHz to 300 MHz, reference level = 0 dBm

+60 dBm, 300 MHz to 3.1 GHz, reference level = 0 dBm

+10 dBm, 10 MHz to 3.1 GHz, reference level = -40 dBm

Exception: < +5 dBm in the range 1850-2330 MHz

Local oscillator feedthrough to input connector: < -75 dBm at reference level = -30 dBm

Audio Output

Audio output (from SignalVu-PC or application programming interface)

Types: AM, FM
IF bandwidth range: Five selections, 8 kHz – 200 kHz
Audio output frequency range: 50 Hz – 10 kHz
PC audio output: 16 bits at 32 ks/s
Audio file output format: .wav format, 16 bit, 32 ks/s

SignalVu-PC base performance summary

Selected SignalVu-PC features when used with the RSA306. See the SignalVu-PC datasheet for more information on the application features.

SignalVu-PC/RSA306 key characteristics

Maximum span: 40 MHz real-time
9 kHz - 6.2 GHz swept
Maximum acquisition time: 1.0 s
Minimum IQ resolution: 17.9 ns (acquisition BW = 40 MHz)

Spectrum display

Traces: Three traces + 1 math trace + 1 trace from spectrogram for spectrum display
Trace functions: Normal, Average (VRMS), Max Hold, Min Hold, Average of Logs
Detector: Average (VRMS), Average, CISPR peak, +Peak, -Peak, Sample
Spectrum trace length: 801, 2401, 4001, 8001,10401, 16001, 32001, and 64001 points
RBW range: 10 Hz to 10 MHz

DPX spectrum display

Spectrum processing rate (RBW = auto, trace length 801)

10,000/s

DPX bitmap resolution

201x801

Marker information

Amplitude, frequency, signal density

Minimum signal duration for 100% probability of detection

100 μs

Span: 40 MHz, RBW = Auto, Max-hold on

Due to the non-deterministic execution time of programs running under the Microsoft Windows OS, this specification may not be met when the host PC is heavily loaded with other processing tasks

Span range (continuous processing)

1 kHz to 40 MHz

Span range (swept)

Up to maximum frequency range of instrument

Dwell time per step

50 ms to 100 s

Trace processing

Color-graded bitmap, +Peak, -Peak, average

Trace length

801, 2401, 4001, 10401

RBW range

1 kHz to 10 MHz

DPX Spectrogram display

Trace detection

+Peak, -Peak, Average(V_RMS)

Trace length, memory depth

801 (60,000 traces)

2401 (20,000 traces)

4001 (12,000 traces)

Time resolution per line

50 ms to 6400 s, user selectable

Analog modulation analysis (standard)

AM demodulation accuracy, typical

±2%

0 dBm input at center, carrier frequency 1 GHz, 1kHz/5kHz input/modulated frequency, 10% to 60% modulation depth

0 dBm input power level, reference level = 10 dBm

FM demodulation accuracy, typical

±3%

0 dBm input at center, carrier frequency 1 GHz, 400Hz/1kHz input/modulated frequency

0 dBm input power level, reference level = 10 dBm

PM demodulation accuracy, typical

±1% of measurement bandwidth

0 dBm input at center, carrier frequency 1 GHz, 1kHz/5kHz input/modulated frequency

0 dBm input power level, reference level = 10 dBm

SignalVu-PC options

AM/FM/PM and direct audio measurement (Option SVA)

Carrier frequency range (for modulation and audio measurements)

(1/2 × audio analysis bandwidth) to maximum input frequency

Maximum audio frequency span

10 MHz

FM measurements (Mod. index >0.1)

Carrier Power, Carrier Frequency Error, Audio Frequency, Deviation (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

AM measurements

Carrier Power, Audio Frequency, Modulation Depth (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

PM measurements

Direct audio measurements

Signal power, Audio frequency (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation distortion, S/N, Total harmonic distortion, Total non-harmonic distortion, Hum and Noise

Audio filters

Low pass: 0.3, 3, 15, 30, 80, 300, and user-entered up to 0.9 × audio bandwidth

High pass: 20, 50, 300, 400, and user-entered up to 0.9 × audio bandwidth

Standard: CCITT, C-Message

De-emphasis (μs): 25, 50, 75, 750, and user-entered

File: User-supplied .TXT or .CSV file of amplitude/frequency pairs. Maximum 1000 pairs

Performance characteristics, typical	Conditions: Unless otherwise stated, performance is given for: Modulation rate = 5 kHz AM depth: 50% PM deviation 0.628 Radians
	FM	AM	PM	Conditions
Carrier Power accuracy	Refer to instrument amplitude accuracy
Carrier Frequency accuracy	± 7 Hz + (transmitter frequency × ref. freq. error)	Refer to instrument frequency accuracy	± 2 Hz + (transmitter frequency × ref. freq. error)	FM deviation: 5 kHz / 100 kHz
Depth of Modulation accuracy	NA	± 0.5%	NA	Rate: 5 kHz Depth: 50%
Deviation accuracy	± (2% × (rate + deviation))	NA	± 3%	FM deviation: 100 kHz
Rate accuracy	± 0.2 Hz	± 0.2 Hz	± 0.2 Hz	FM deviation: 5 kHz / 100 kHz
Residual THD	0.5%	0.5%	NA	FM Deviation: 5 kHz / 100 kHz Rate: 1 kHz
Residual SINAD	49 dB 40 dB	56 dB	42 dB	FM deviation 5 kHz FM deviation 100 kHz Rate: 1 kHz

Pulse measurements (Option SVP)

Measurements (nominal)

Average On Power, Peak Power, Average Transmitted Power, Pulse Width, Rise Time, Fall Time, Repetition Interval(seconds), Repetition Interval (Hz), Duty Factor (%), Duty Factor (ratio), Ripple, Droop, Pulse-Pulse Frequency Difference, Pulse-Pulse Phase Difference, RMS Frequency Error, Max Frequency Error, RMS Phase Error, Max Phase Error, Frequency Deviation, Phase Deviation, Time Stamp, Delta Frequency, Impulse Response, Overshoot

Minimum pulse width for detection

150 ns

Average ON power at 18 °C to 28 °C, typical

±1.0 dB + absolute amplitude accuracy

For pulses of 300 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB

Duty factor, typical

±0.2% of reading

For pulses of 450 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB

Average transmitted power, typical

±1.0 dB + absolute amplitude accuracy

For pulses of 300 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB

Peak pulse power, typical

±1.5 dB + absolute amplitude accuracy

For pulses of 300 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB

Pulse width, typical

±0.25% of reading

For pulses of 450 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB

General purpose digital modulation analysis (Option SVM)

Modulation formats

BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, PI/2DBPSK, DQPSK, PI/4DQPSK, D8PSK, D16PSK, SBPSK, OQPSK, SOQPSK, 16-APSK, 32-APSK, MSK, GFSK, CPM, 2FSK, 4FSK, 8FSK, 16FSK, C4FM

Analysis period

Up to 81,000 samples

Measurement filter

Root Raised Cosine, Raised Cosine, Gaussian, Rectangular, IS-95 TX_MEA, IS-95 Base TXEQ_MEA, None

Reference Filter

Gaussian, Raised Cosine, Rectangular, IS-95 REF, None

Filter rolloff factor

α：0.001 to 1, in 0.001 steps

Measurements

Constellation, Demod I&Q vs. Time, Error Vector Magnitude (EVM) vs. Time, Eye Diagram, Frequency Deviation vs. Time, Magnitude Error vs. Time, Phase Error vs. Time, Signal Quality, Symbol Table, Trellis Diagram

Symbol rate range

1 k symbols/s to 40 M symbols/s

Modulated signal must be contained entirely within the acquisition bandwidth

Adaptive equalizer

Linear, Decision-Directed, Feed-Forward (FIR) equalizer with coefficient adaptation and adjustable convergence rate. Supports modulation types BPSK, QPSK, OQPSK, π/2-DBPSK, π/4-DQPSK, 8-PSK, 8-DSPK, 16-DPSK, 16/32/64/128/256-QAM,16/32-APSK

QPSK Residual EVM (center frequency = 2 GHz), typical

1.1 % (100 kHz symbol rate)

1.1 % (1 MHz symbol rate)

1.2 % (10 MHz symbol rate)

2.5 % (30 MHz symbol rate)

400 symbols measurement length, 20 Averages, normalization reference = maximum symbol magnitude

256 QAM Residual EVM (center frequency = 2 GHz), typical

0.8 % (10 MHz symbol rate)

1.5 % (30 MHz symbol rate)

400 symbols measurement length, 20 Averages, normalization reference = maximum symbol magnitude

WLAN Measurements, 802.11a/b/g/j/p (Option SV23)

Measurements

WLAN power vs. time; WLAN symbol table; WLAN constellation; spectrum emission mask; error vector magnitude (EVM) vs. symbol (or time), vs subcarrier (or frequency); mag error vs symbol (or time), vs. subcarrier (or frequency); phase error vs symbol (or time), vs. subcarrier (or frequency); channel frequency response vs. symbol (or time), vs. subcarrier (or frequency); spectral flatness vs. symbol (or time), vs. subcarrier (or frequency)

Residual EVM - 802.11a/g/j /p (OFDM), 64-QAM, typical

2.4 GHz, 20 MHz BW: -38 dB

5.8 GHz, 20 MHz BW: -38 dB

Input signal level optimized for best EVM, average of 20 bursts, ≥16 symbols each

Residual EVM - 802.11b, CCK-11, typical

2.4 GHz, 11 Mbps: 2.0 %

Input signal level optimized for best EVM, average of 1,000 chips, BT = .61

WLAN Measurements 802.11n (Option SV24)

Measurements

EVM performance - 802.11n, 64-QAM, typical

2.4 GHz, 40 MHz BW: -35 dB

5.8 GHz, 40 MHz BW: -35 dB

Input signal level optimized for best EVM, average of 20 bursts, ≥16 symbols each

WLAN Measurements 802.11ac (Option SV25)

Measurements: WLAN power vs. time; WLAN symbol table; WLAN constellation; spectrum emission mask; error vector magnitude (EVM) vs. symbol (or time), vs subcarrier (or frequency); mag error vs symbol (or time), vs. subcarrier (or frequency); phase error vs symbol (or time), vs. subcarrier (or frequency); channel frequency response vs. symbol (or time), vs. subcarrier (or frequency); spectral flatness vs. symbol (or time), vs. subcarrier (or frequency)
EVM performance - 802.11ac, 256-QAM, typical: 5.8 GHz, 40 MHz BW : -35 dB
Input signal level optimized for best EVM, average of 20 bursts, ≥16 symbols each

APCO P25 Measurements (Option SV26)

Measurements

RF output power, operating frequency accuracy, modulation emission spectrum, unwanted emissions spurious, adjacent channel power ratio, frequency deviation, modulation fidelity, frequency error, eye diagram, symbol table, symbol rate accuracy, transmitter power and encoder attack time, transmitter throughput delay, frequency deviation vs. time, power vs. time, transient frequency behavior, HCPM transmitter logical channel peak adjacent channel power ratio, HCPM transmitter logical channel off slot power, HCPM transmitter logical channel power envelope, HCPM transmitter logical channel time alignment, cross-correlated markers

Modulation fidelity, typical

C4FM = 1.3%

HCPM = 0.8%

HDQPSK = 2.5%

Input signal level is optimized for best modulation fidelity.

Bluetooth Measurements (Option SV27)

Modulation formats

Basic Rate, Bluetooth Low Energy, Enhanced Data Rate - Revision 4.1.1

Measurements

Peak Power, Average Power, Adjacent Channel Power or InBand Emission mask, -20dB Bandwidth, Frequency Error, Modulation Characteristics including ΔF1avg (11110000), ΔF2avg (10101010), ΔF2 > 115 kHz, ΔF2/ΔF1 ratio, frequency deviation vs. time with packet and octet level measurement information, Carrier Frequency f0, Frequency Offset (Preamble and Payload), Max Frequency Offset, Frequency Drift f₁-f₀, Max Drift Rate f_n-f₀ and f_n-f_n-5, Center Frequency Offset Table and Frequency Drift table, color-coded Symbol table, Packet header decoding information, eye diagram, constellation diagram

Output power, In-band emissions and ACP

Level uncertainty: refer to instrument amplitude and flatness specification

Measurement range: signal level > –70 dBm

Modulation characteristics

Deviation range: ±280 kHz

Deviation uncertainty (at 0 dBm)

2 kHz + instrument frequency uncertainty (basic rate)

3 kHz + instrument frequency uncertainty (low energy)

Measurement range: Nominal channel frequency ±100 kHz

Initial Carrier Frequency Tolerance (ICFT)

Measurement uncertainty (at 0 dBm): <1 khz="" instrument="" frequency="" uncertainty="" p="">

Measurement range: Nominal channel frequency ±100 kHz

Carrier Frequency Drift

Measurement uncertainty: <2 khz="" instrument="" frequency="" uncertainty="" p="">

Measurement range: Nominal channel frequency ±100 kHz

Mapping

Supported map types: Pitney Bowes MapInfo (*.mif), Bitmap (*.bmp)
Saved measurement results: Measurement data files (exported results)
Map file used for the measurements: Google Earth KMZ file
Recallable results files (trace and setup files): MapInfo-compatible MIF/MID files

RF signal strength

Signal strength indicator: Located at right side of display
Measurement bandwidth: Up to 40 MHz, dependent on span and RBW setting
Tone type: Variable frequency based on received signal strength

Inputs, outputs, interfaces

RF input: Type N, female

External frequency reference input: SMA, female

Trigger/sync input: SMA, female

Status indicator: LED, dual color red/green

USB device port: USB 3.0 - Micro-B

Physical characteristics

Dimensions

Height: 30.5 mm (1.2 in)
Width: 190.5 mm (7.5 in)
Depth: 127 mm (5 in)

Weight: 0.59 kg (1.3 lbs)

Regulatory

Safety: UL61010-1, CAN/CSA-22.2 No.61010-1, EN61010-1, IEC61010-1

Regional certifications: Europe: EN61326
Australia/New Zealand: AS/NZS 2064

EMC emissions: EN61000-3-2, EN61000-3-3, EN61326-2-1

EMC immunity: EN61326–1/2, IEC61000-4-2/3/4/5/6/8/11

Environmental performance

Temperature

Operating: -10 °C to +55 °C (+14 °F to +131 °F)
Nonoperating: -51 °C to +71 °C (-60 °F to +160 °F)

Humidity (operating): 5% to 75% ±5% relative humidity (RH) from +30 °C to +40 °C (+86 °F to 104 °F)
5% to 45% RH above +40 °C to +55 °C (+86 °F to +131 °F)

Altitude

Operating: Up to 9,144 meters (30,000 feet)
Nonoperating: 15,240 meters (50,000 feet)

Dynamics

Mechanical shock, operating: Half-sine mechanical shocks, 30 g peak amplitude, 11 μs duration, three drops in each direction of each axis (18 total)
Random vibration, nonoperating: 0.030 g²/Hz, 10-500 Hz, 30 minutes per axis, three axes (90 minutes total)

Handling and transit

Bench handling, operating: Per MIL-PRF-28800F Class 2 operating: Rotational-edge-drops of appropriate edges on appropriate sides of the equipment
Transit drop, nonoperating: Per MIL-PRF-28800F Class 2 nonoperating: Transit drops onto six faces and four corners of the equipment, from a height of 30 cm (11.8 in.) for a total of 10 impacts
