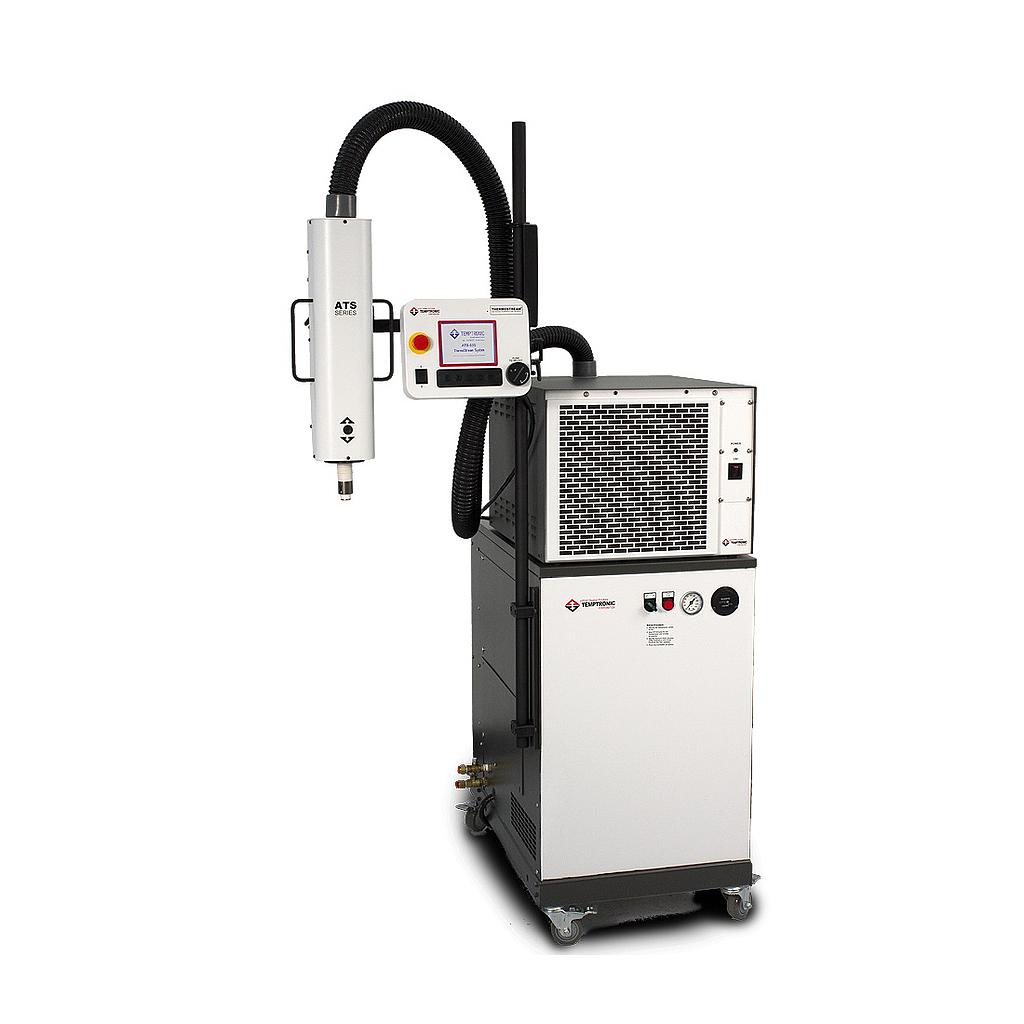

Temptronic ATS-535 Thermostream® (-60~225°C)

Description

Advanced Temperature Source for fast and precise thermal conditioning of components, parts, hybrids, modules, subassemblies, and printed circuit boards. Capable of low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2)

Performance

Temperature Range*: -60 to +225°C No LN2 or LCO2 Required

Transition Rate*:

-40 to +125°C, <12 seconds

+125 to -40°C, <40 seconds

System Airflow Output*: 5scfm (2.4 l/s) Fixed Flow Rate

*Under nominal operating conditions.

Power Requirements

Chiller Power: 220 ±10% VAC, 50/60Hz, 16amp

Compressor Power: 220 ±10% VAC, 50/60Hz, 30amp

Temperature Range: -60 to +225°C

Transition Rates:

Heating: -40 to +125°C, <12 sec

Cooling: +125 to -40°C, <40 sec

System Airflow Output: 5scfm (2.4 l/s) Fixed Flow Rate

Temperature control

Temperature Display & Resolution: +/- 0.1°C

Temperature Accuracy: 1.0°C (when calibrated against NIST standard)

DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled

DUT Sensor Ports: Thermocouples (type T & K)

Operating environment

Operating Temperature: +20°C ~ +28°C; +23°C nominal

Humidity: 0 ~ 60%; 45% nominal
