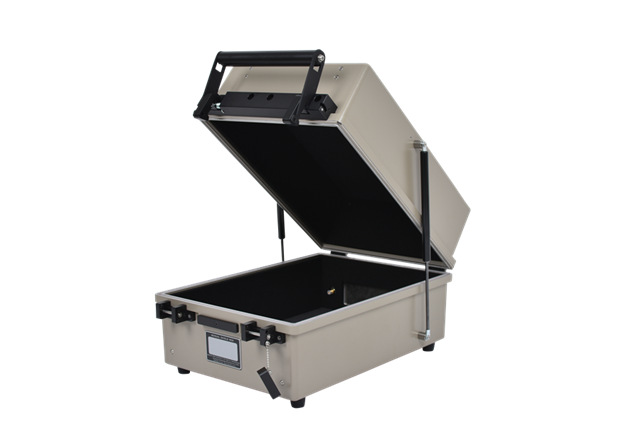

TESCOM TC-5922B Shield Box
Manufacturer: Tescom Model: TC-5922B Origin: Korea Guarantee: 12 Month - Request a Quotation
- Contact
◈ Mechanical Specifications
Basic I/O connectors
RF connectors : two(2) N(f) outside and SMA(f) inside
Dimension

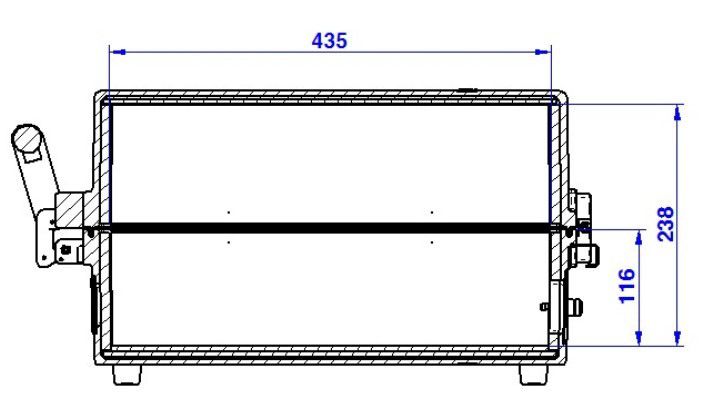

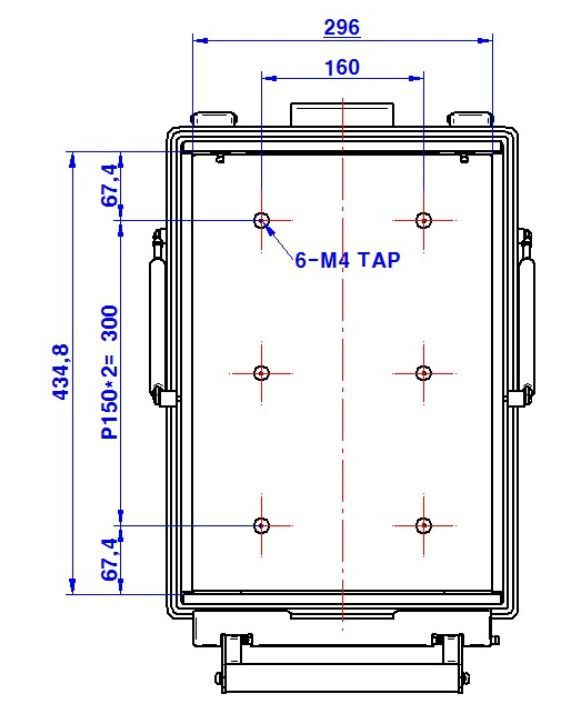

- Inside : 296(W) x 435(D) x 238(H) mm

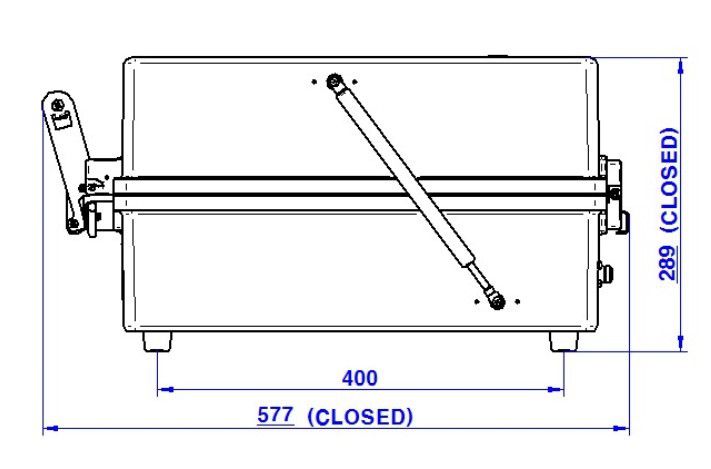

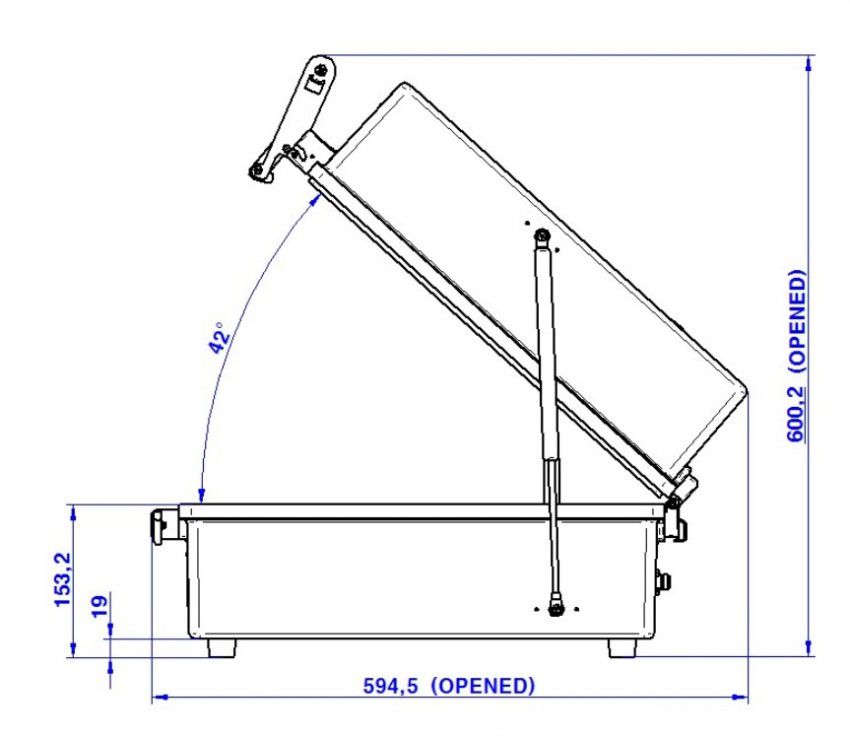

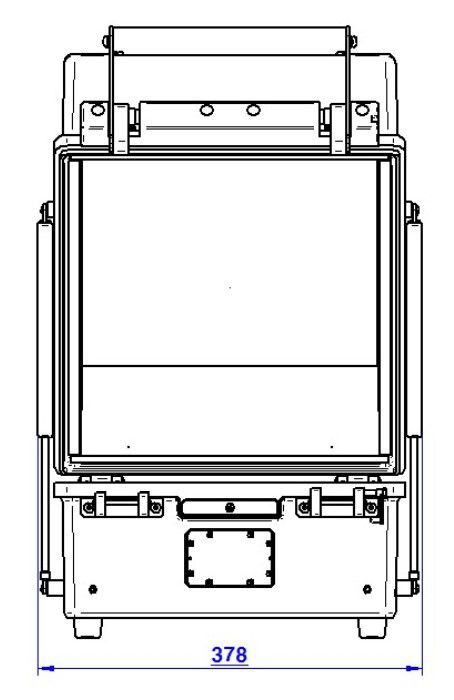

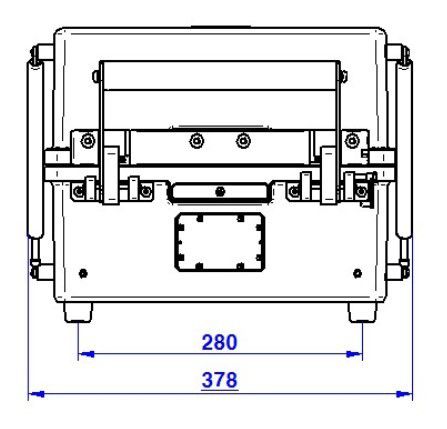

- Outside : 378(W) x 577(D) x 289(H) mm, lid closed. 600(H) mm, lid open.
Weight : Approx. 22kg
Packing (The size or weight of a package may vary on how to pack a package.)
- Size : 560(W) x 820(D) x 470(H) mm
- Weight : Approx. 28 kg
◈ Typical RF Shielding
The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
Frequency / Shielding effectivness (dB)
- 100 to 2000 MHz : > 70 dB
- 2000 to 3000 MHz : > 70 dB
- 3000 to 6000 MHz : > 60 dB
