TESTO 350 Portable Emission Analyzer

Name: TESTO 350 Portable Emission Analyzer
Brand: TESTO

ManufacturerTESTO

Model350

OriginGermany

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Technical Data

Temperature - NTC
Measuring range	-4° to 122 °F / -20 to +50 °C
Accuracy	±0.4 °F (14° to 122 °F) / ±0.2 °C (-10 to +50 °C)
Resolution	0.1 °F (-4° to 122 °F) / 0.1 °C (-20 to +50 °C)

Ambient temperature probe

Temperature - Type K TC

Measuring range

-328.0° to 2498.0 °F / -200 to +1370 °C

Accuracy

±0.7 °F (-148.0° to 392.0 °F) / ±0.4 °C (-100 to +200 °C)

±1.8 °F (-328.0° to -148.2 °F) / ±1 °C (-200 to -100.1 °C)

±1.8 °F (392.2° to 2498.0 °F) / ±1 °C (200.1 to +1370 °C)

Resolution

±0.1 °F (-328.0° to 2498.0 °F) / 0.1 °C (-200 to +1370 °C)

Temperature - TC Type S (Pt10Rh-Pt)
Measuring range	32.0° to 3200.0 °F / 0 to +1760 °C
Accuracy	±1.8 °F (32.0° to 3200.0 °F) / ±1 °C (0 to +1760 °C)
Resolution	±0.1 °F (32.0° to 3200.0 °F) / 0.1 °C (0 to +1760 °C)

Differential Pressure

Measuring range

-16 to +16 InH₂O / -40 to +40 hPa

-80 to +80 InH₂O / -200 to +200 hPa

Accuracy

±1.5 % of mv (-16 to -1 InH₂O) / ±1.5 % of mv (-40 to -3 hPa)

±1.5 % of mv (+1 to +16 InH₂O) / ±1.5 % of mv (+3 to +40 hPa)

±0.01 InH₂O (-1.20 to +1.20 InH₂O) / ±0.03 hPa (-2.99 to +2.99 hPa)

±1.5 % of mv (-80 to -20 InH₂O) / ±1.5 % of mv (-200 to -50 hPa)

±1.5 % of mv (+20 to +80 InH₂O) / ±1.5 % of mv (+50 to +200 hPa)

±0.2 InH₂O (-20.0 to +20.0 InH₂O) / ±0.5 hPa (-49.9 to +49.9 hPa)

Resolution

0.01 InH₂O (-16 to +16 InH₂O) / 0.01 hPa (-40 to +40 hPa)

0.1 InH₂O (-80 to +80 InH₂O) / 0.1 hPa (-200 to +200 hPa)

Absolute Pressure
Measuring range	240 to +460 InH₂O / 600 to +1150 hPa
Accuracy	±4 InH₂O / ±10 hPa
Resolution	1 InH₂O / 1 hPa

opt. when equipped with IR sensor

Flue gas O₂
Measuring range	0 to +25 Vol.%
Accuracy	±0.8% of fsv (0 to +25 Vol.%)
Resolution	0.01 Vol.% (0 to +25 Vol.%)
Reaction time t₉₀	20 sec (t95)

Flue gas CO
Measuring range	0 to +10000 ppm
Accuracy	±5 % of mv (+200 to +2000 ppm) ±10 % of mv (+2001 to +10000 ppm) ±10 ppm (0 to +199 ppm)
Resolution	1 ppm (0 to +10000 ppm)
Reaction time t₉₀	40 sec

H₂ only as an indicator

Flue gas COlow
Measuring range	0 to 500 ppm
Accuracy	±5 % of mv (+40 to +500 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	0.1 ppm (0 to +500 ppm)
Reaction time t₉₀	40 sec

H₂ only as an indicator

Flue Gas NO
Measuring range	0 to +4000 ppm
Accuracy	±5 % of mv (+100 to +1999 ppm) ±10 % of mv (+2000 to +4000 ppm) ±5 ppm (0 to +99 ppm)
Resolution	1 ppm (0 to +4000 ppm)
Reaction time t₉₀	30 sec

Flue gas NOlow
Measuring range	0 to +300 ppm
Accuracy	±5 % of mv (+40 to +300 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	±0.1 ppm (0 to +300 ppm)
Reaction time t₉₀	30 sec

Flue Gas NO₂
Measuring range	0 to +500 ppm
Accuracy	±5 % of mv (+100 to +500 ppm) ±5 ppm (0 to +9.99 ppm)
Resolution	0.1 ppm (0 to +500 ppm)
Reaction time t₉₀	40 sec

Flue Gas SO₂
Measuring range	0 to +5000 ppm
Accuracy	±5 % of mv (+100 to +2000 ppm) ±10 % of mv (+2001 to +5000 ppm) ±5 ppm (0 to +99 ppm)
Resolution	1 ppm (0 to +5000 ppm)
Reaction time t₉₀	30 sec

Efficiency (calculated)
Measuring range	0 to +120 %
Resolution	0.1 % (0 to +120 %)

Flue Gas loss (calculated)
Measuring range	0 to +99.9 %
Resolution	0.1 % (0 to +99.9 %)

Flue Gas dewpoint (calculated)
Measuring range	0 to +99.9 °Ctd
Resolution	0.1 °Ctd (0 to +99.9 °Ctd)

Flue Gas CO₂ calculation (calculated from O₂)
Measuring range	0 to CO₂ max
Accuracy	calculated from O₂ ±0.2 Vol.%
Resolution	0.01 Vol.%

Flue gas H₂S
Measuring range	0 to +300 ppm
Accuracy	±5 % of mv (+40 to +300 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	0.1 ppm (0 to +300 ppm)
Reaction time t₉₀	35 sec

Flue Gas CO₂ - NDIR
Measuring range	0 to +50 Vol.%
Accuracy	±0.3 Vol.% + 1 % of mv (0 to 25 Vol.%) ±0.5 Vol.% + 1.5 % of mv (25 to 50 Vol.%)
Resolution	0.01 Vol.% (0 to 25 Vol.%) 0.1 Vol.% (> 25 Vol.%)
Reaction time t₉₀	10 sec

Velocity / Volume flow
Measuring range	0 to +7874 fpm / 0 to +40 m/s
Resolution	19.7 fpm (0 to +7874 fpm) / 0.1 m/s (0 to +40 m/s)

Methane (CH₄)
Measuring range	100 to 40000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (2 x mv methane)
Reaction time t₉₀	< 40 sec
Response factor	1

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

Propane (C₃H₈)
Measuring range	100 to 21000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (5 x mv propane)
Reaction time t₉₀	< 40 sec
Response factor	1.5

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

Butane (C₄H₁₀)
Measuring range	100 to 18000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (6.5 x mv butane)
Reaction time t₉₀	< 40 sec
Response factor	2

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

General technical data
Dimensions	13 x 5 x 17 in. / 330 x 128 x 438 mm
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	ABS
Protection class	IP40
Battery type	lithium batteries
Battery life	5 h
Power supply	AC mains unit 100V to 240V (50 to 60 Hz)
DC electric tension input	11V to 40V
Trigger input	Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA
Max. humidity load	70 °C dewpoint temperature
Dewpoint calculation	0 °Ctd; 99 °Ctd
Max. dust load	20 g/m³ dust in flue gas
Max. neg. press./flue gas	-4.4 psi / -300 mbar
Max. pos. press./flue gas	0.7 psi / 50 mbar
Hose length	16.2 m (corresponds to 5 probe hose extensions)
Pump flow	1 l/min. with through-flow monitoring
Maximum	250,000 readings
Storage temperature	-4.0° to 122.0 °F / -20 to +50 °C
Weight	169 oz. / 4800 g

Datasheet

Manual

The testo 350 Portable Emission Analyzer

Whether you are testing for compliance or troubleshooting and tuning the testo 350 portable emission analyzer offers everything you need!

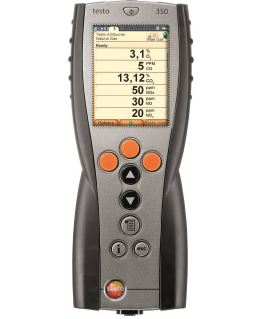

Control Unit - Provides remote control operation up to 300 ft away

Color graphic display is easy to see in dark or bright conditions
Go wireless with long-range 300 ft. Bluetooth (or wired to over 3,000 ft.) to eliminate long sample lines

Analyzer box - for high accuracy measurements

Contains up to six sensors, pumps, gas path, sample conditioning, and more
Conditions the gas sample automatically, thermoelectric (peltier) chiller as required by regulatory agencies

Test up to six gases simultaneously, or swap sensors out for additional parameters with field replaceable pre-calibrated digital sensors

Dilution system for the widest testing ranges and greatest sensor protection
Sample conditioning utilizes a thermoelectric chiller and a peristaltic hose pump for controlled water removal and EPA compliance
Automatic flow-controlled high strength pump
Proven sample gas path with Teflon® lined hoses
Continuous temperature compensation for assured accuracy
Flow rate and sensor temperature monitoring for US EPA CTM-030, -034, ASTM D6522, and SCAQMD 1110.2 and 1146 requirements
User defined programs with onboard memory to 250,000 values
User configured testing programs
Emission Rates: Real time display w/ EPA Method 19 Calculations
Mass flow and emission rates with pitot tube
User defined O2 reference for EPA and state reporting
