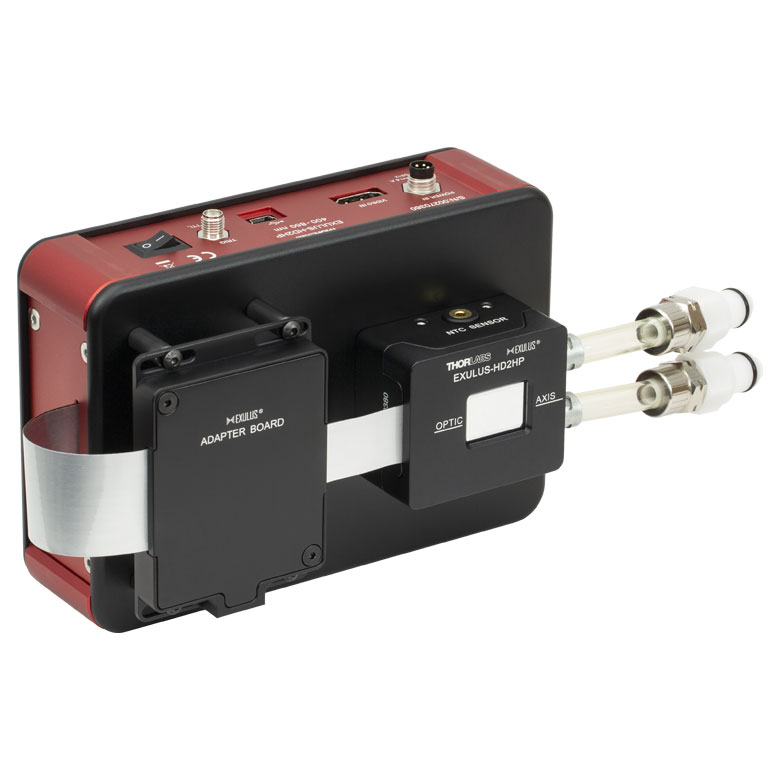

THORLABS EXULUS-HD2HP Exulus Spatial Light Modulators with WUXGA Resolution, High Power (400 - 850 nm)

Key Specifications(a):

Operating Wavelength: 400 - 850 nm

Panel Resolution: 1920 x 1200 (WUXGA)

Fill Factor: >92%

Panel Active Area: 15.42 mm x 9.66 mm

Pixel Pitch: 8 µm

Phase / Retardance Range(b,c): 2π at 633 nm

Frame Rate: 60 Hz

Fluctuation/ Flickering (RMS): <0.01%

Output Trigger: Yes (SMA)

(a) Complete specifications may be found on the manual.

(b) Angles of incidence other than 0° will result in phase shifts that differ from the programmed pattern. Angles of up to 10° are possible without significantly affecting performance.

(c) The phase/retardance range values are for 30 °C when used with the LK220 liquid chiller.

(d) Fluctuation / Flickering is the phase fluctuation as the percentage of the entire phase range and is dependent on the current phase setting. The value stated is the maximum fluctuation and typically occurs at half of the phase range.
