THORLABS LCC25 Benchtop Voltage Controller for Liquid Crystal Devices | EMIN.COM.MM

Voltage
THORLABS LCC25 Benchtop Voltage Controller for Liquid Crystal Devices

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

Product image

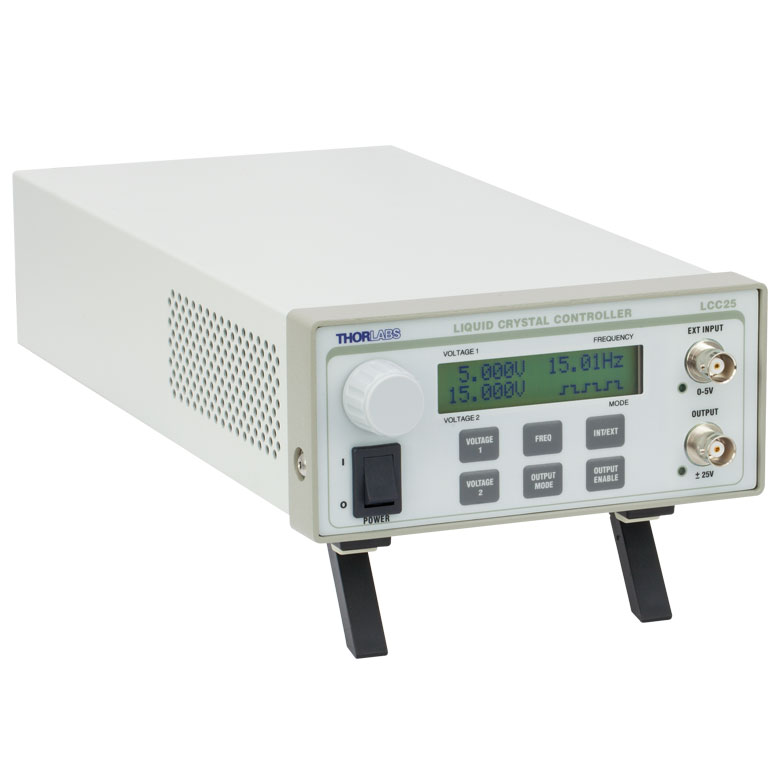

THORLABS LCC25 Benchtop Voltage Controller for Liquid Crystal Devices

ManufacturerTHORLABS(View more products from this manufacturer)

ModelLCC25

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Electrical Specifications

Adjustable Output Voltage: 0 to ±25 V RMS

External Input Voltage: 0 to 5 VDC Square Wave

Voltage Resolution: 1.0 mV

Adjustable Internal Modulation Frequency: 0.5 to 150 Hz at 50% Duty Cycle

Switching Frequency: 2,000 ± 5 Hz, 50% Duty Cycle

Slew Rate: 10 V/µs

DC offset: ±10 mV

Max Output Current: 15 mA

AC Power: 85 - 264 VAC, 47 - 63 Hz, 25 VA

Fuse Rating: 125 mA, 5 x 20 mm SLO-BLO

Warm Up Time: 30 Minutes

Physical Specifications

External Input Connector: BNC

External Input Enable: Front Panel: INT/EXT enable Key

External Input Indicator: Green LED

Output Connector: BNC

Output Enable: Front Panel: OUTPUT ENABLE Key

Output Indicator: Green LED

Rotary Knob: Digital Encoder

Display: LCD 16 x 2

Power Switch: Rocker Switch

USB interface: USB Standard B Plug

Dimensions: 5.75" x 3" x 12.2" (146 mm x 78 mm x 309 mm)

Weight: 3.6 lbs

Operating Temperature Range: 10 to 40°C

Maximum Relative Humidity: 85%

Other: Tilting Rubber-Padded Feet

MANUAL:
