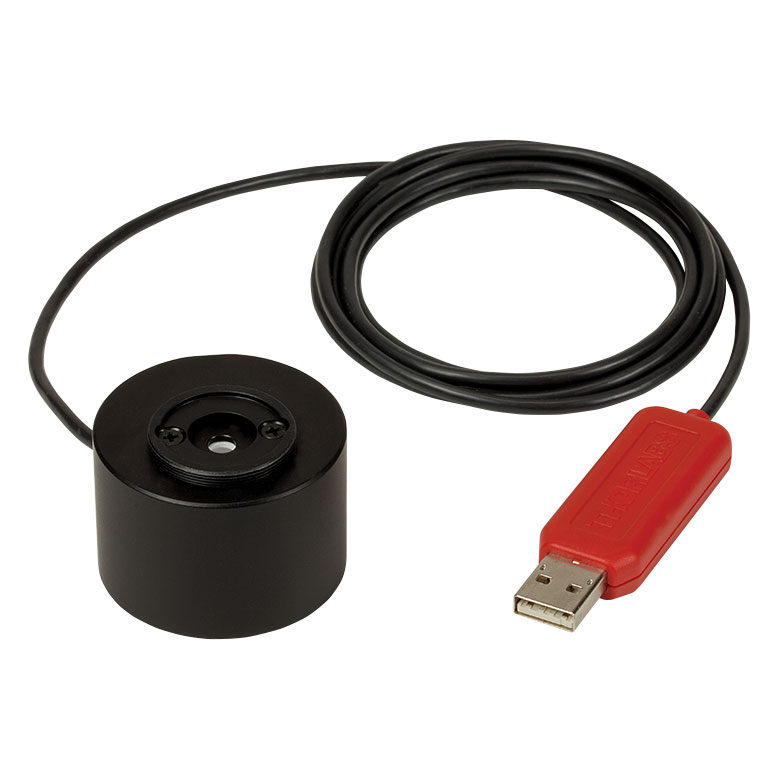

THORLABS PM16-144 Compact USB Power Meters with Integrating Sphere Sensors (800-1700 nm)
Manufacturer: THORLABS Model: PM16-144 - Contact
Detector Type: Integrating Sphere (InGaAs Photodiode)
Wavelength Range: 800 - 1700 nm
Optical Power Range: 1 µW - 500 mW
Aperture Size: Ø5 mm
Resolution: <1 nW
Integrating Sphere Material / Diameter: Zenith PTFE Integrating Sphere / Ø1"
Sensor Housing Dimensions: Ø45 mm x 30.5 mm (1.77" x 1.20")
Post Mounting: 8-32 and M4 Taps
Included Fiber Adapter: S120-FC for FC/PC and FC/APC Connectors
For complete power meter specifications, see the manual
