Wavelength Range: 190 nm - 20 µm
Optical Power Working Range(a): 100 µW - 5 W
Active Sensor Area: 10.0 mm x 10.0 mm (0.39" x 0.39")
Max Average Power Density(b): 1.5 kW/cm²
Max Pulse Energy Density: 0.3 J/cm2 (1 ns Pulse), 5 J/cm2 (1 ms Pulse)

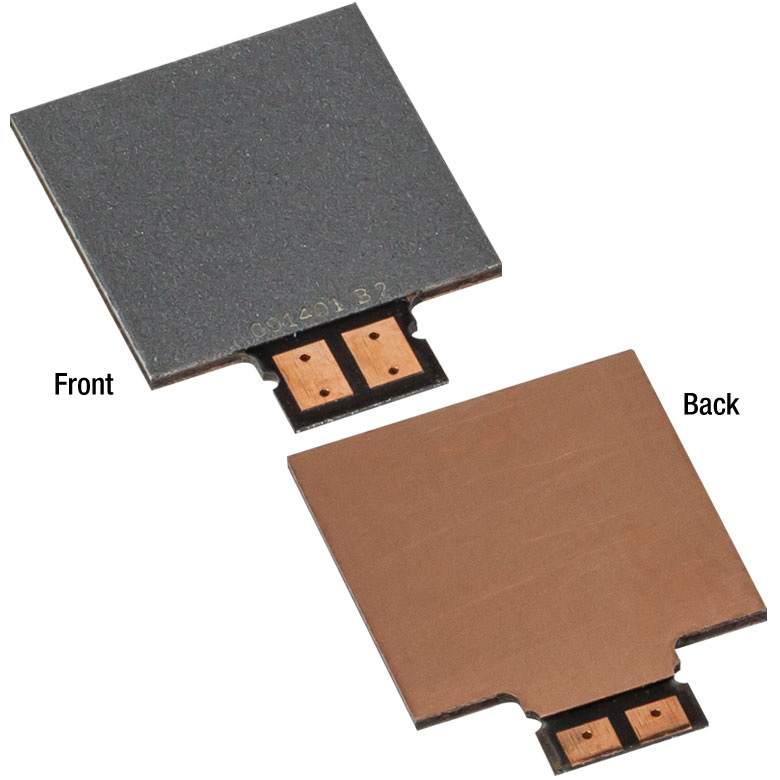

Detector Type: Thermopile
Typical Responsivity: >100 mV/W
Linearity with Optical Power: ±0.2%
Rise Time(c): 1.1 s
Active Area Uniformity: ±1% (>1 mm Beam Diameter)
Detector Dimensions: 10.0 mm x 13.0 mm x 0.6 mm (0.39" x 0.51" x 0.02")
Mounting(a): SMD Solder Pads or Thermally Conductive Adhesive
Electrical Connection: PCB, Wire
(a) Mounting on an appropriate heat sink is required. For mounting instructions and other information, see the Handling Instructions manual.
(b) Damage Threshold
(c) Typical Natural Response Time (0 - 95%)
