Wavelength Range: 190 nm - 20 µm
Optical Power Working Range (a): 1 mW - 50 W
Spatial Resolution: 50 µm
Active Sensor Area: 18.0 mm x 18.0 mm (0.71" x 0.71")
Max Average Power Density(b): 1.5 kW/cm²
Max Pulse Energy Density: 0.3 J/cm^2 (1 ns Pulse), 5 J/cm^2 (1 ms Pulse)

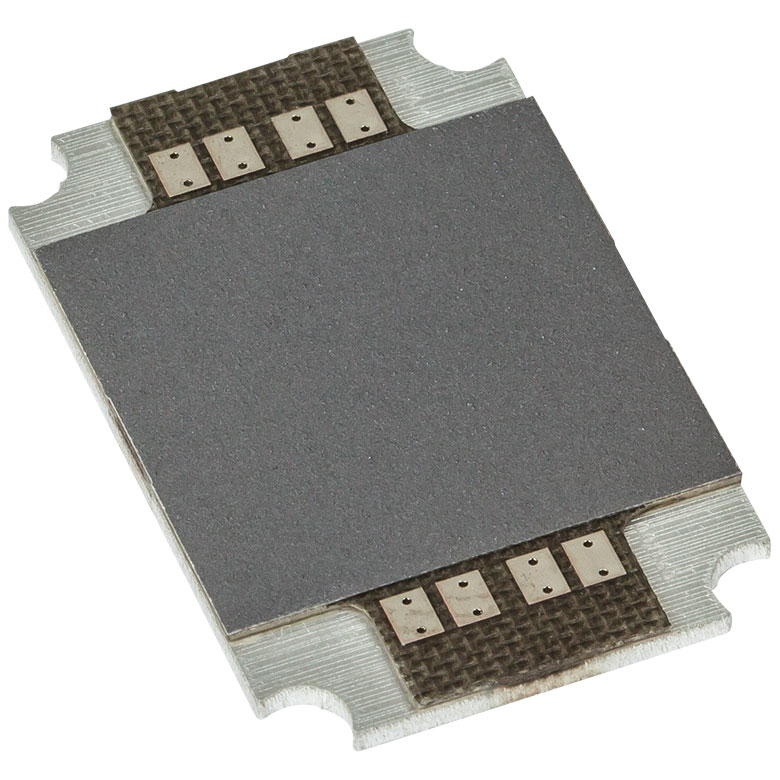

Detector Type: Four Thermopiles in Quadrant Configuration
Min Responsivity, Each Quadrant: 0.5 mV/W
Linearity with Optical Power: ±0.2%
Rise Time(c): 0.25 s
Active Area Uniformity: ±1% (>1 mm Beam Diameter)
Detector Dimensions: 28.0 mm x 18.0 mm x 1.5 mm (1.10" x 0.71" x 0.06")
Substrate: Aluminum Plate
Mounting(a): Four 1.6 mm (0.06") Radius Quarter-Hole Mounting Points
Electrical Connection: Wire
(a) Mounting on an appropriate heat sink is required. For mounting instructions and other information, see the Handling Instructions manual.
(b) Damage Threshold
(c) Typical Natural Response Time (0 - 95%)
