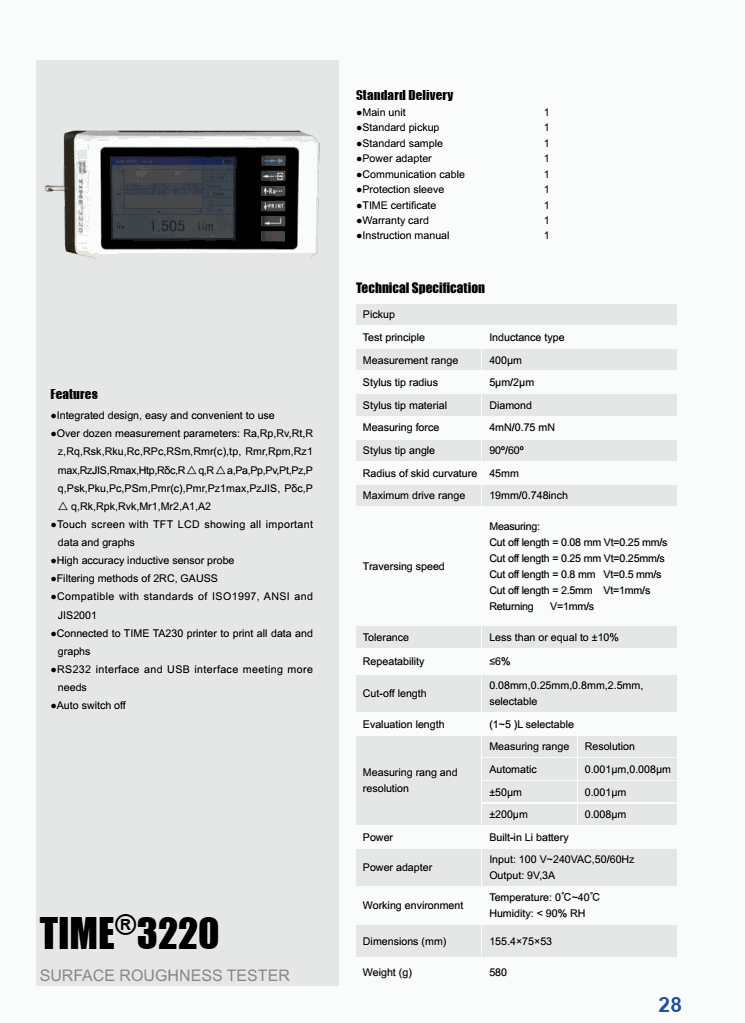

Test principle: Inductance type
Measurement range: 400μm
Stylus tip radius: 5μm/2μm
Stylus tip material: Diamond
Measuring force: 4mn/0.75 mn
Stylus tip angle: 90º/60º
Radius of skid curvature: 45mm
Maximum drive range: 19mm/0.748inch
Traversing speed
Measuring:
Cut off length = 0.08 mm Vt=0.25 mm/s
Cut off length = 0.25 mm Vt=0.25mm/s
Cut off length = 0.8 mm Vt=0.5 mm/s
Cut off length = 2.5mm Vt=1mm/s
Returning: V=1mm/s
Tolerance: Less than or equal to ±10%
Repeatability: ≤6%
Cut-off length:
0.08mm, 0.25mm, 0.8mm, 2.5mm, selectable
Evaluation length: (1~5 )L selectable
Measuring range and Resolution:
Measuring range: Automatic; ±50μm; ±200μm
Resolution: 0.001μm, 0.008μm; 0.001μm; 0.008μm
Power: Built-in Li battery
Power adapter:
Input: 100 V~240VAC, 50/60Hz Output: 9V, 3A
Working environment
Temperature: 0℃~40℃
Humidity: < 90% RH
Dimensions (mm): 155.4×75×53
Weight (g): 580
Standard Delivery
Main unit
Standard pickup
Standard sample
Power adapter
Communication cable
Protection sleeve
TIME certificate
Warranty card
Instruction manual
