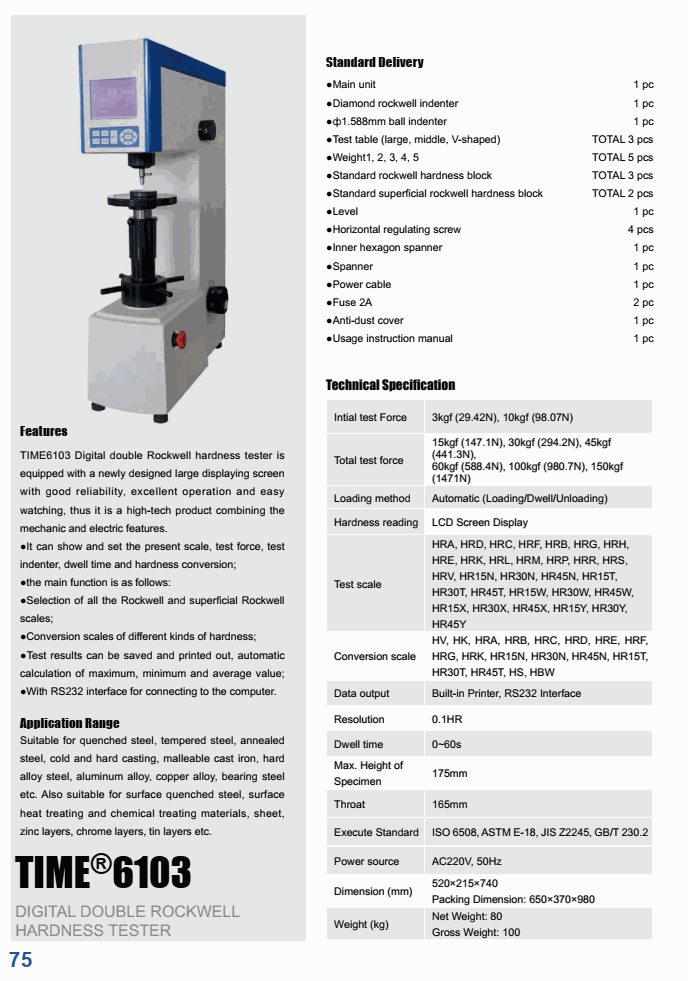

Intial test Force: 3kgf (29.42n), 10kgf (98.07n)
Total test force:
15kgf (147.1n), 30kgf (294.2n), 45kgf (441.3n), 60kgf (588.4n), 100kgf (980.7n), 150kgf (1471n)
Loading method: Automatic (Loading/Dwell/Unloading)
Hardness reading: LCD Screen Display
Test scale:
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15y, HR30y, HR45y
Conversion scale:
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HBW
Data output: Built-in Printer, RS232 Interface
Resolution: 0.1HR
Dwell time: 0~60s
Max. Height of Specimen: 175mm
Throat: 165mm
Execute Standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2
Power source: AC220V, 50Hz
Dimension (mm)
520×215×740
Packing Dimension: 650×370×980
Weight (kg)
net Weight: 80
Gross Weight: 100
Main unit
Diamond rockwell indenter
ф1.588mm ball indenter
Test table (large, middle, V-shaped)
Weight 1, 2, 3, 4, 5
3x Standard rockwell hardness block
2 x Standard superficial rockwell hardness block Level
4 x Horizontal regulating screw
Inner hexagon spanner
Spanner
Power cable
2x Fuse 2A
Anti-dust cover
Usage instruction manual
