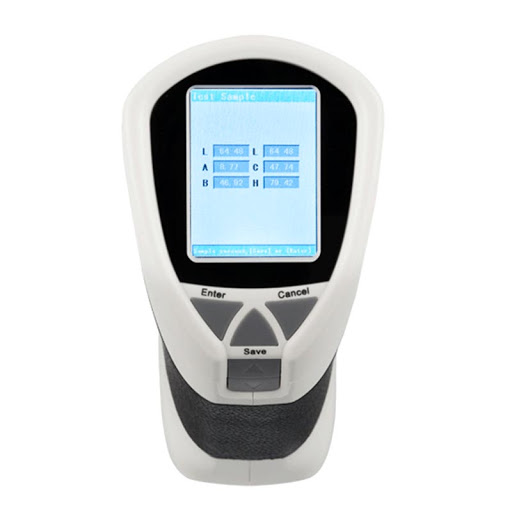

TIME TCR200 Precise Color Reader (L: 1 ~ 100)

Technical Specification

Illumination system: 8/d(8°/diffused illumination), specular component included(SCI)

Display modes:

Colorimetric values: L x a x b，L x C x h，

△E*ab，XYZ，relative RGB values;

Color difference values: △(Lxaxb), △(LxCxh);

Whiteness values: hunter whiteness, ganz whiteness

Yellowness value: YI

Measuring caliber: About 8mm

Measuring conditions: CIE 10°standard observer;

CIE D65 light source

Measuring range:  L*：1-100

Repeatability: Standard deviation within△E*ab*，0.08 (condition: measure the white calibration board 30 times for average)

Storage: 100 sets of standard samples; up to 100 under each standard sample

Measuring time: About 0.5 seconds

Measuring light source: LED

Interface languages: Chinese, English

Power source: Four AA1.5V alkaline battery or nickelmetal hydride batteries; ExclusiveDC5V adapter

Port: USB 2.0, printer

Dimension (mm): 77×86×210

Weight (g): 550
